Leeson

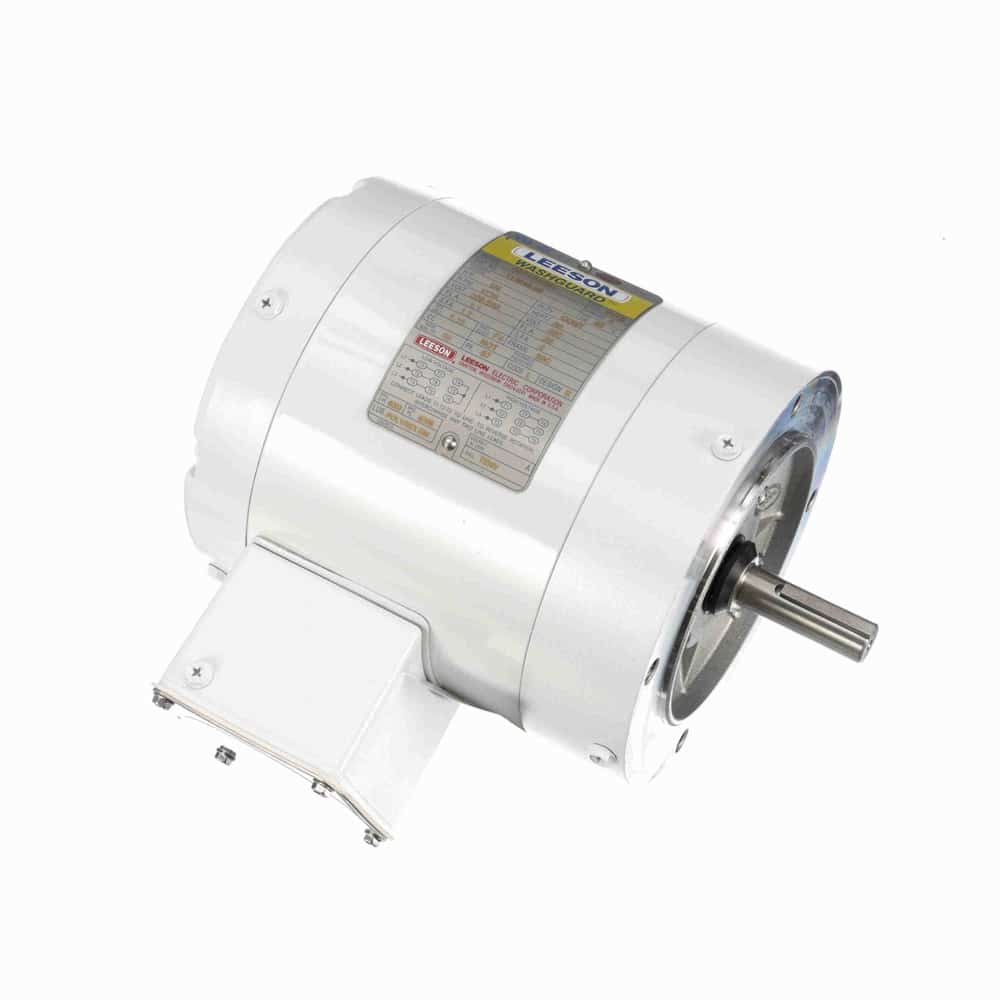

0.25HP 3PH 56C 4P TENV 1725 230/460V NB
Mfr # 113649.00 | Wright’s # LSN 113649.00
1/4HP Painted Epoxy Coated Washdown Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 113649.00
Wright's # LSN 113649.00
Country of Origin USA
Specifications
C Dim 9.56"
Electrical Type Squirrel Cage Induction Run
Enclosure TENV
Full Load Efficiency 68
Frame 56C
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class F
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.1/0.55
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
