Leeson
2HP 1PH 56J 2P TEFC 3450 115/230V AOL
Mfr # 113641.00 | Wright’s # LSN 113641.00

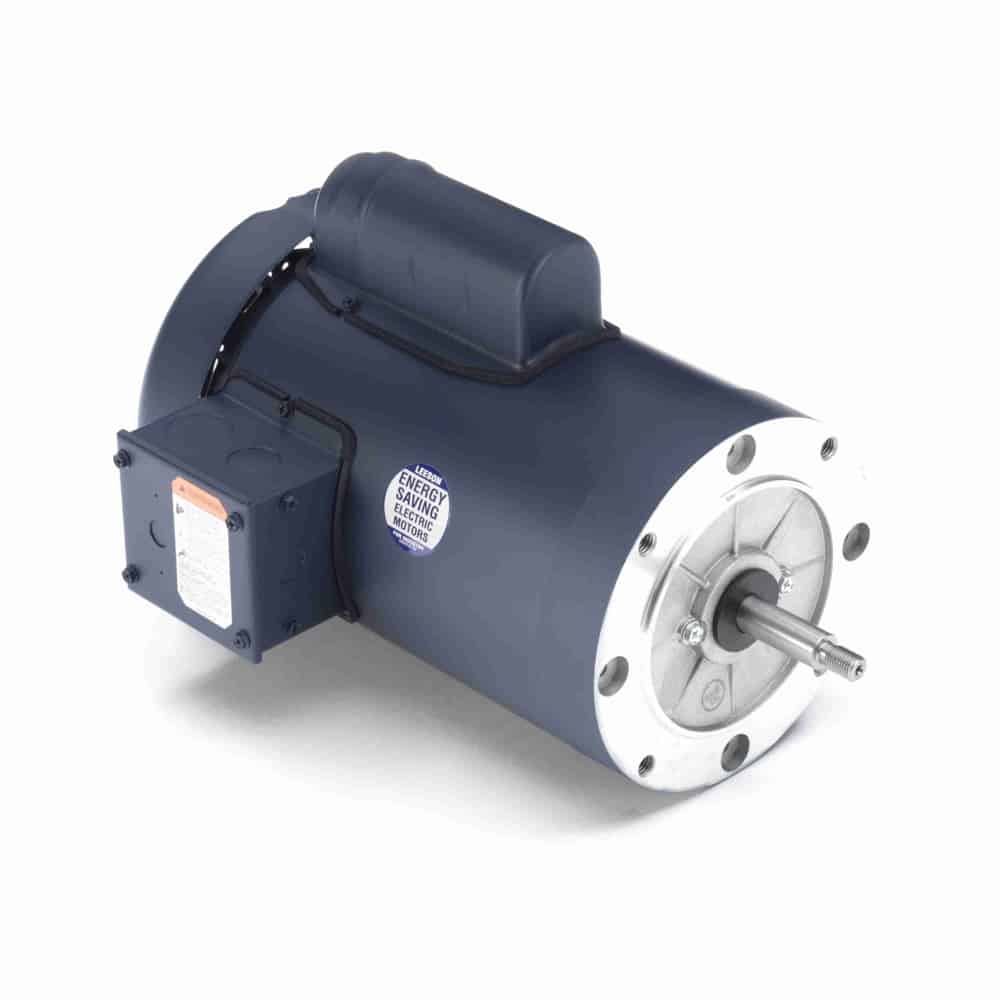

2HP Jet Pump Motor, 1 Phase, 56J Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure, Automatic Overload Protection
$707.93
Product Information
Brand
Leeson
Mfr #
113641.00
Wright's #
LSN 113641.00
Country of Origin
USA
Specifications
C Dim
13.78"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
73
Frame
56J
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
F
kW
1.5kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
20.0/10.0
Rated Voltage
115/230
Rotation
Fixed Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
