Leeson
1.50HP 1PH 56J 2P TEFC 3450 115/230V AOL
Mfr # 113640.00 | Wright’s # LSN 113640.00

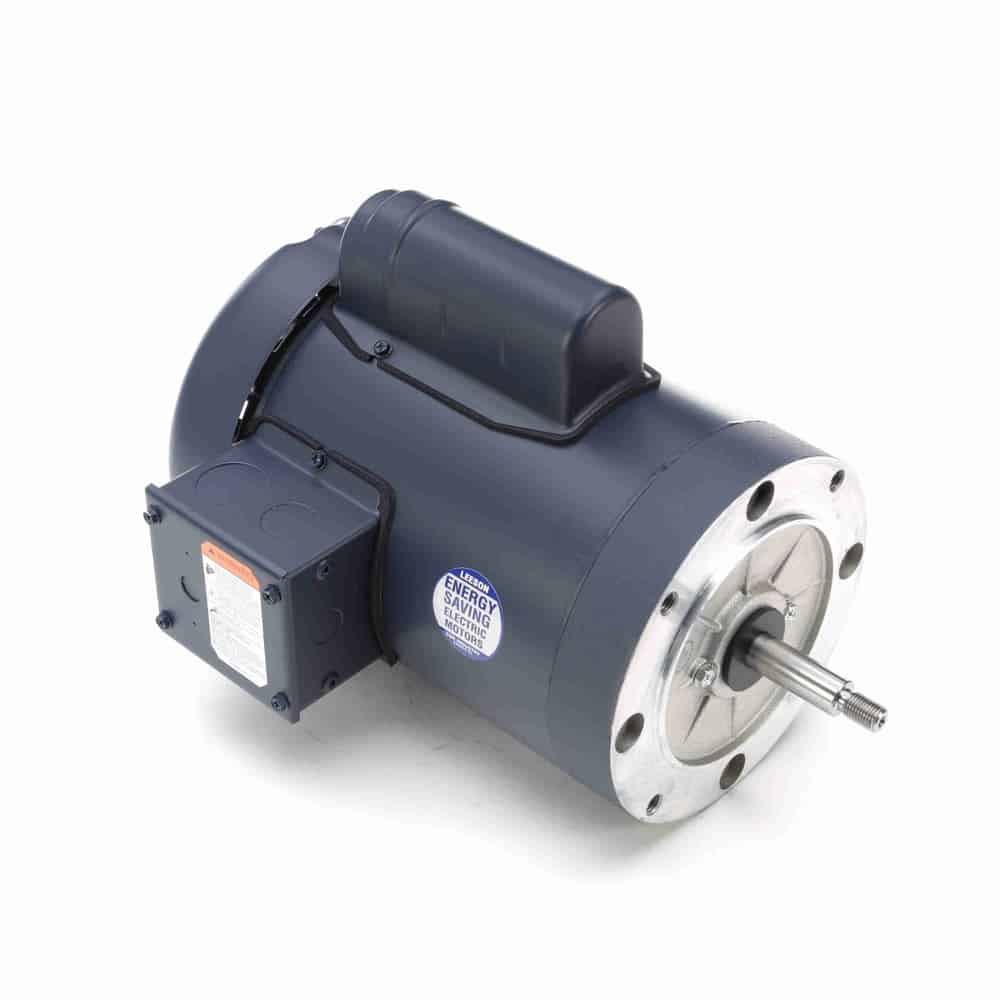

1-1/2HP Jet Pump Motor, 1 Phase, 56J Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
113640.00
Wright's #
LSN 113640.00
Country of Origin
USA
Specifications
C Dim
12.86"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
72
Frame
56J
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
17.0/8.5
Rated Voltage
115/230
Rotation
Fixed Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
NEMA 56 C face mounting flange
Keyed shafts made of carbon steel
Dual rotation – Key shaft motors only
Quiet flow-through ventilation system
Double sealed bearings on shaft end
Terminal board with quick connects
Locked shaft-end bearings
UL recognized and CSA certified
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
