Leeson
0.50HP 1PH 56J 2P TEFC 3450 115/230V AOL
Mfr # 113637.00 | Wright’s # LSN 113637.00

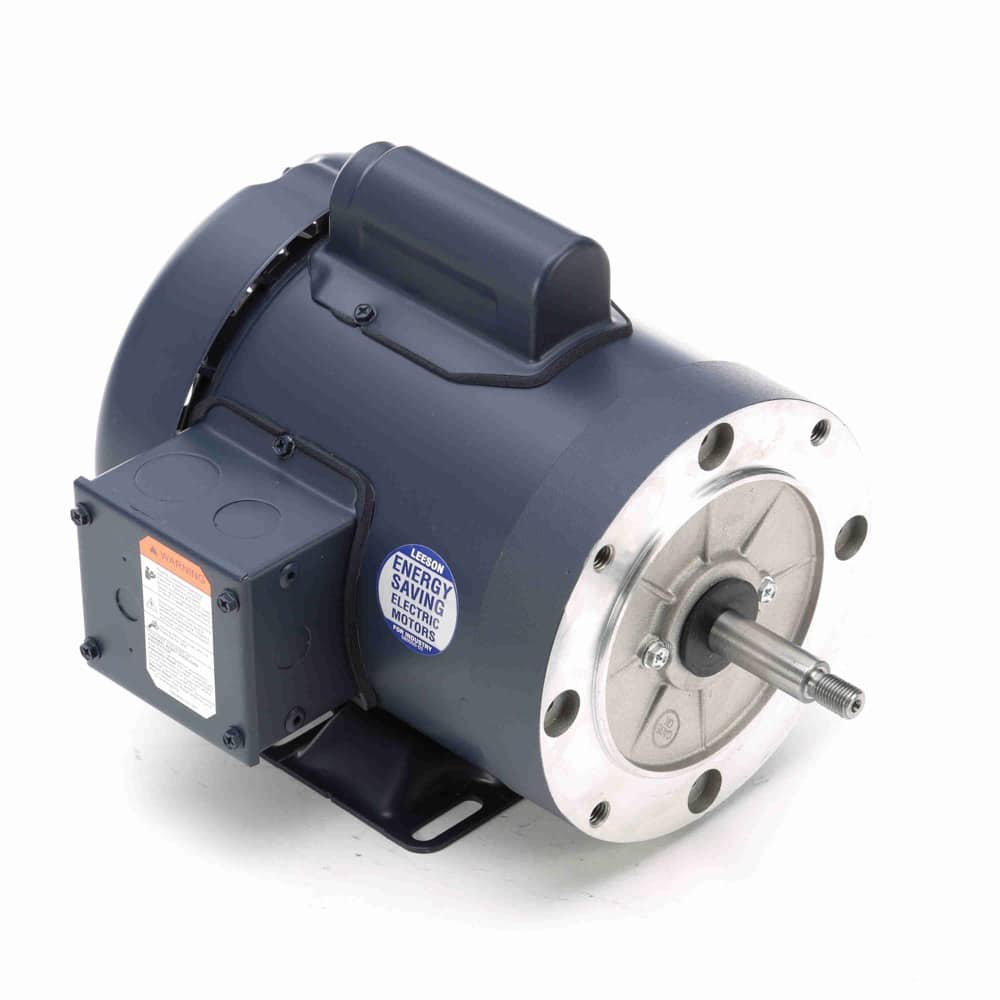

1/2HP Jet Pump Motor, 1 Phase, 56J Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
113637.00
Wright's #
LSN 113637.00
Country of Origin
USA
Specifications
C Dim
11.28"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
63
Frame
56J
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.6/3.8
Rated Voltage
115/230
Rotation
Fixed Clockwise
RPM
3450
Service Factor
1.6
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
NEMA® 56 C face mounting flange
Keyed shafts made of carbon steel
Dual rotation – Key shaft motors only
Quiet flow-through ventilation system
Double sealed bearings on shaft end
Terminal board with quick connects
Locked shaft-end bearings
UL recognized and CSA certified
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
