1HP 1PH 56H 4P EXP TEFC 1725 115/208-230V AOL
Leeson

1HP 1PH 56H 4P EXP TEFC 1725 115/208-230V AOL

Mfr # 110961.00 | Wright’s # LSN 110961.00

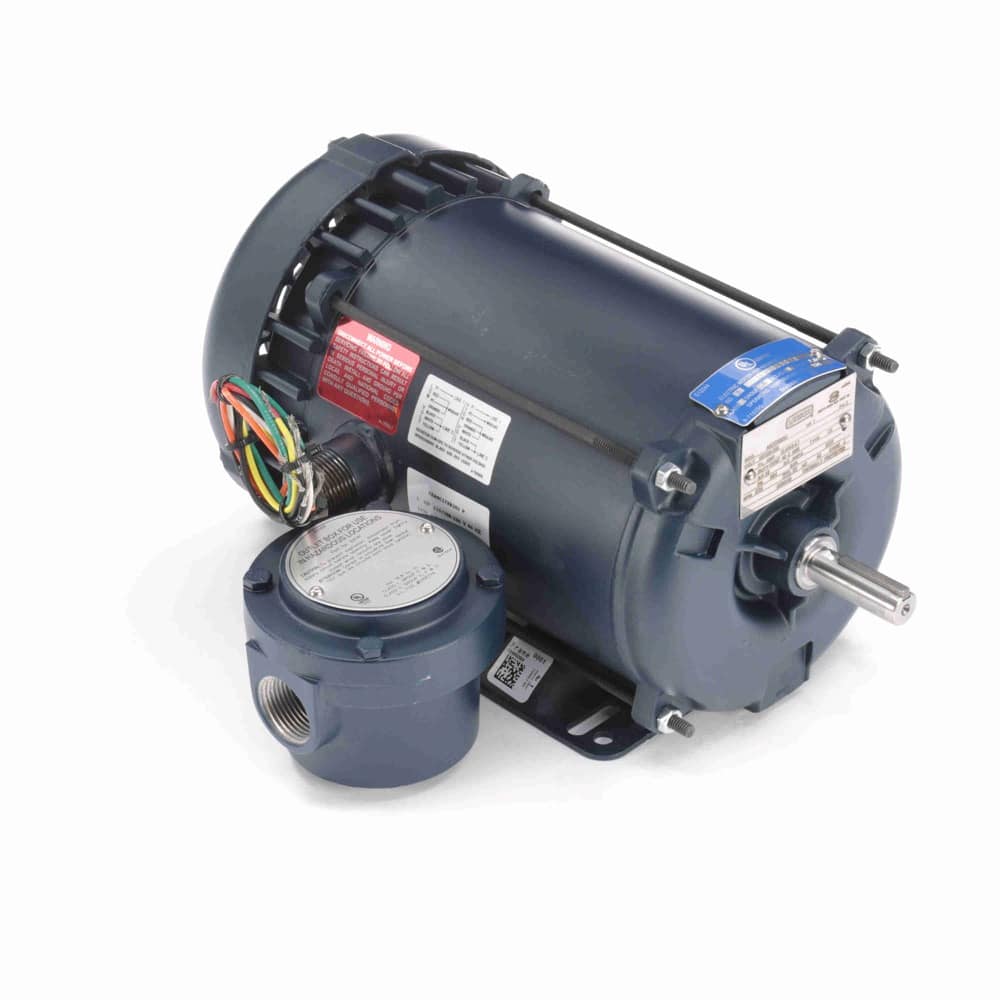

1HP Explosion Proof Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, EXP TEFC Enclosure, Automatic Overload Protection

2 in stock

Sign in to access special pricing and availability.
x

$165.10

Product Information

Brand Leeson
Mfr # 110961.00
Wright's # LSN 110961.00
Country of Origin MEX

Specifications

C Dim 14.08"
Electrical Type Capacitor Start Induction Run
Enclosure EXP TEFC
Full Load Efficiency 72
Frame 56H
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class B
kW 0.75kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 13.4/6.8-6.7
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625"
Speed 1725
Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.
140 frame motor and below include explosion proof conduit box, shipped loose.
