Leeson

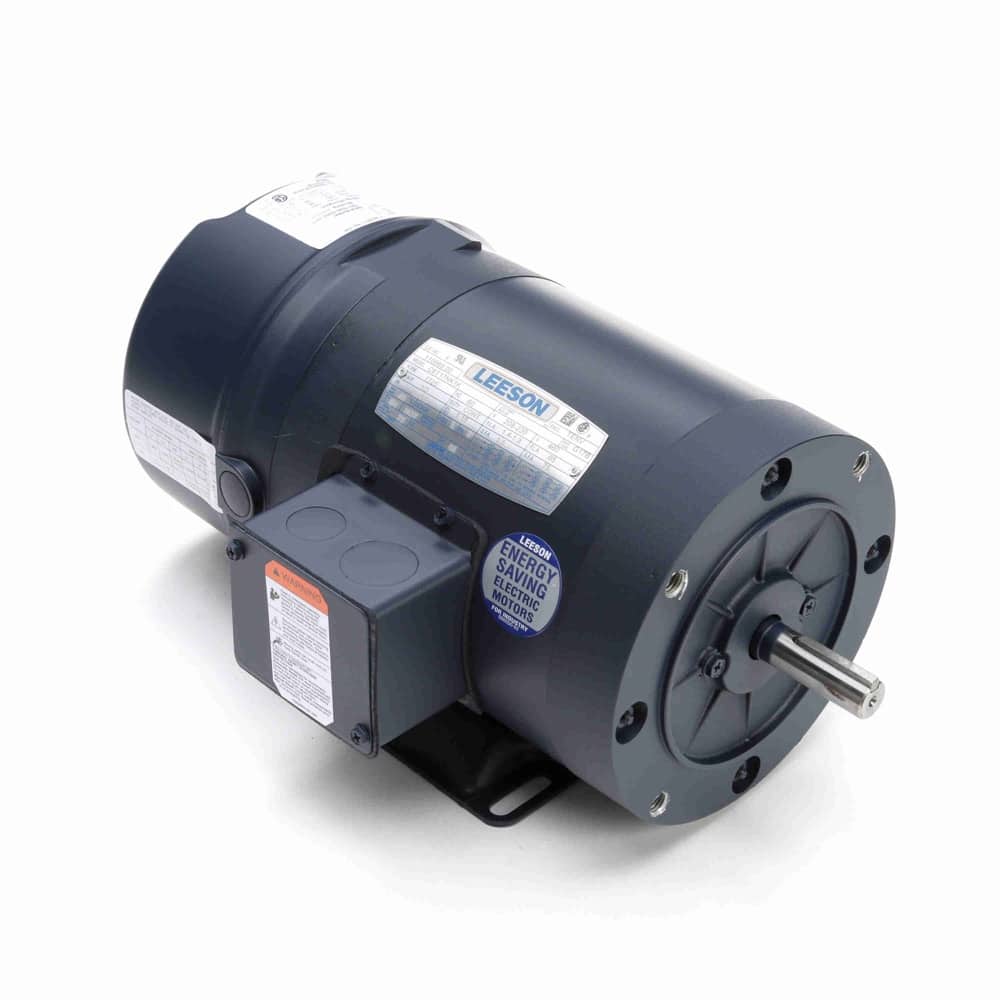

0.33HP 3PH 56C 4P TENV 1725 230/460V WB Brake
Mfr # 110669.00 | Wright’s # LSN 110669.00
1/3HP Brake Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
110669.00
Wright's #
LSN 110669.00
Country of Origin
USA
Specifications
C Dim
13.56"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TENV
Full Load Efficiency
72
Frame
56C
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.3/0.65
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Fail-safe positive stop and holding brakes
Load stops automatically when power is turned off
Dual voltage brake coils
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
