Leeson

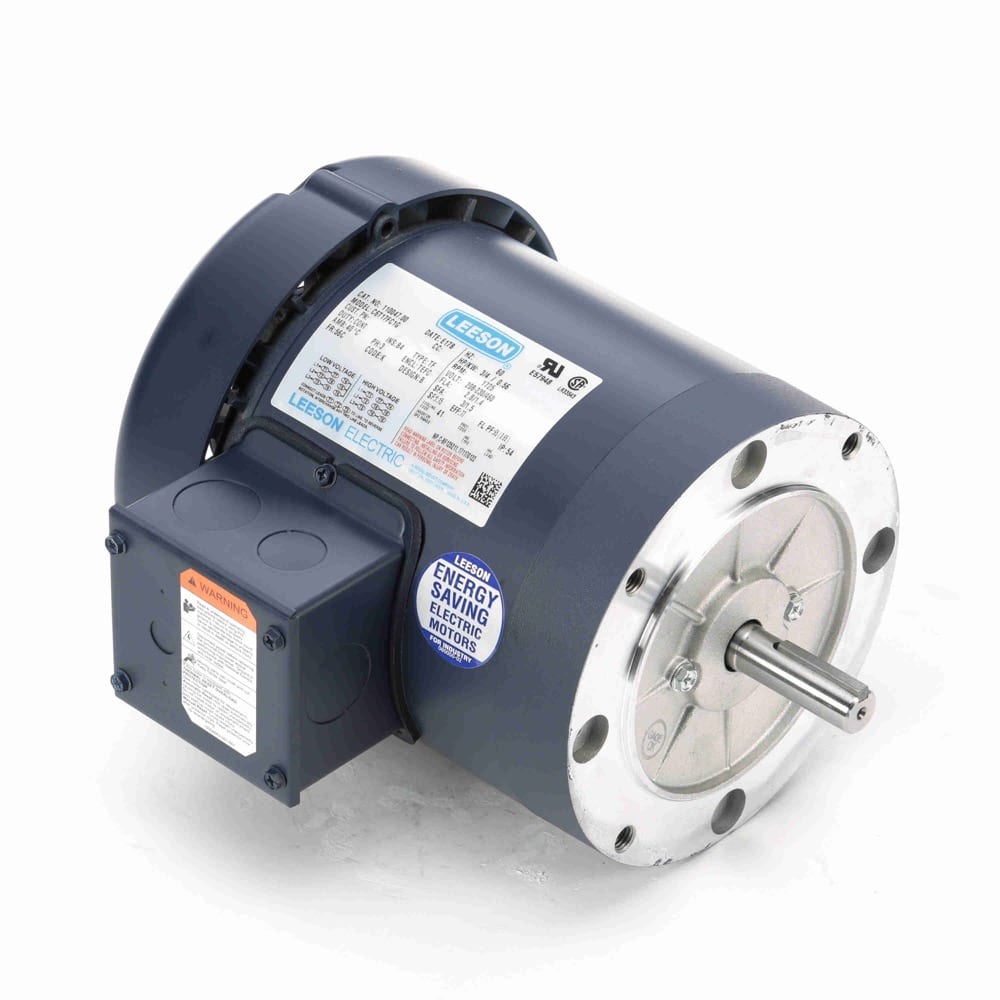

0.75HP 3PH 56C 4P TEFC 1725 230/460V NB
Mfr # 110047.00 | Wright’s # LSN 110047.00
3/4HP General Purpose Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
110047.00
Wright's #
LSN 110047.00
Country of Origin
USA
Specifications
C Dim
10.48"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
77
Frame
56C
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.8/1.4
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
