Leeson

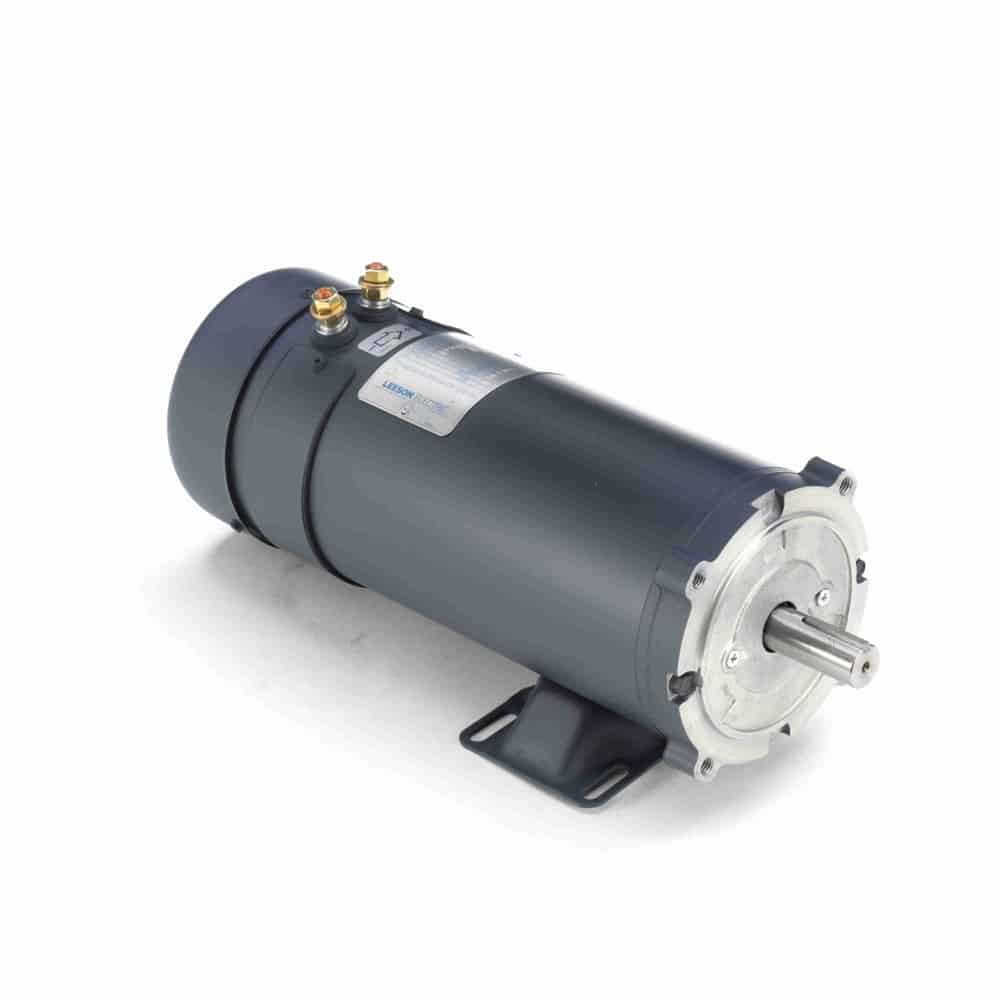

2HP 56CZ TEFC 1800 24V WB DC
Mfr # 109106.00 | Wright’s # LSN 109106.00
2HP Low Voltage DC Motor, 56CZ Frame, 1800 RPM, 24V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
109106.00
Wright's #
LSN 109106.00
Country of Origin
USA
Specifications
C Dim
16.74"
Enclosure
TEFC
Full Load Efficiency
85.8
Frame
56CZ
HP
2 HP
HP2
2 HP
Insulation Class
F
kW
1.5kW
Max Ambient
40°C
Mounting Type
Rigid C Base
Overload Protection
No Protection
Rated Current
70.0
Rated Voltage
24
Rotation
Reversible
RPM
1800
Service Factor
1
Shaft Diameter
0.875"
Speed
1800
Description
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
