Leeson

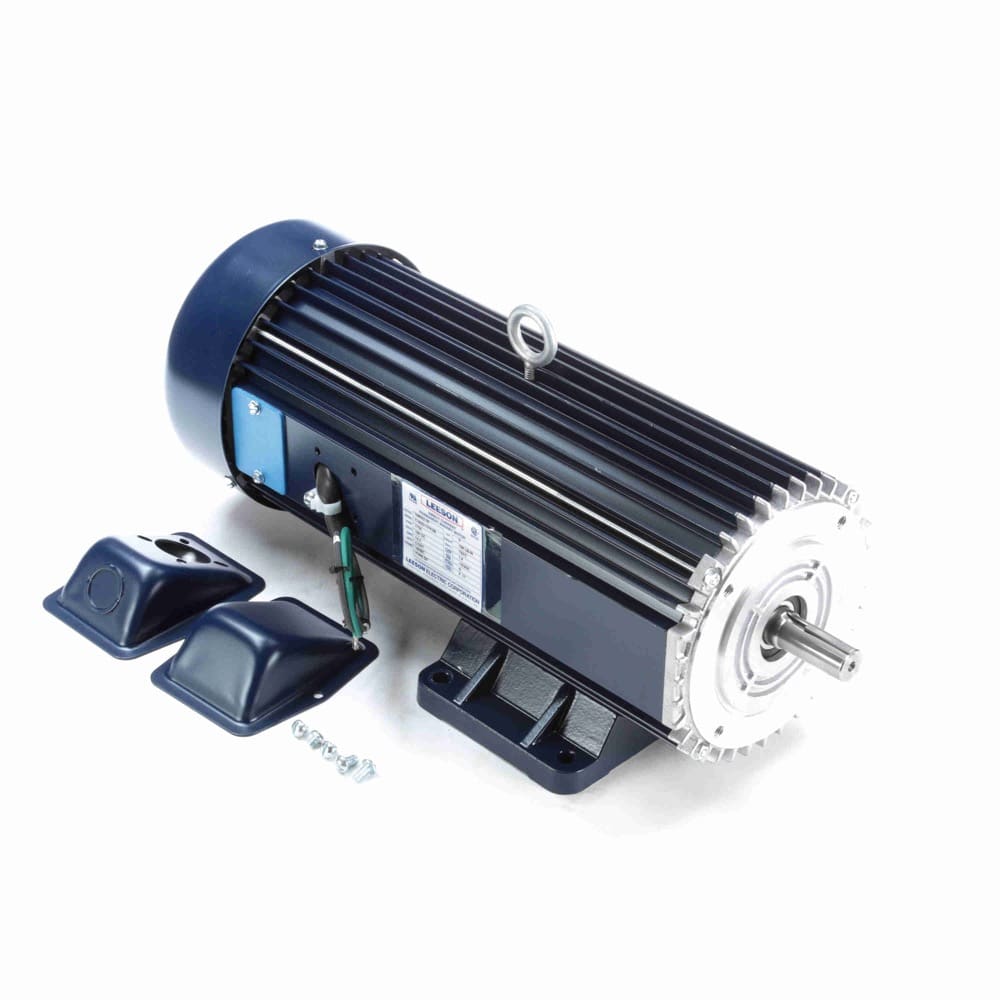

3HP 182TC TEFC 1750 180V WB DC
Mfr # 108502.00 | Wright’s # LSN 108502.00
3HP DC SCR Motor, 182TC Frame, 1750 RPM, 180V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
108502.00
Wright's #
LSN 108502.00
Country of Origin
USA
Specifications
C Dim
19.6"
Enclosure
TEFC
Full Load Efficiency
88.8
Frame
182TC
HP
3 HP
HP2
3 HP
Insulation Class
H
kW
2.2kW
Max Ambient
40°C
Mounting Type
Rigid C Base
Overload Protection
No Protection
Rated Current
14.0
Rated Voltage
180
Rotation
Reversible
RPM
1750
Service Factor
1
Shaft Diameter
0.875"
Speed
1750
Description
Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Removable bolt-on base; NEMA C face designs
115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
PWM or SCR type controller rated; High starting torque
Permanently lubricated sealed bearings
LEESON SCR controls available to power motors; High starting torque
Higher HP and speed achievable using PWM type DC controls
UL and CSA Listed; Meets NEMA MG1 standards
Dynamically balanced armatures; 30:1 constant torque operation
