Leeson

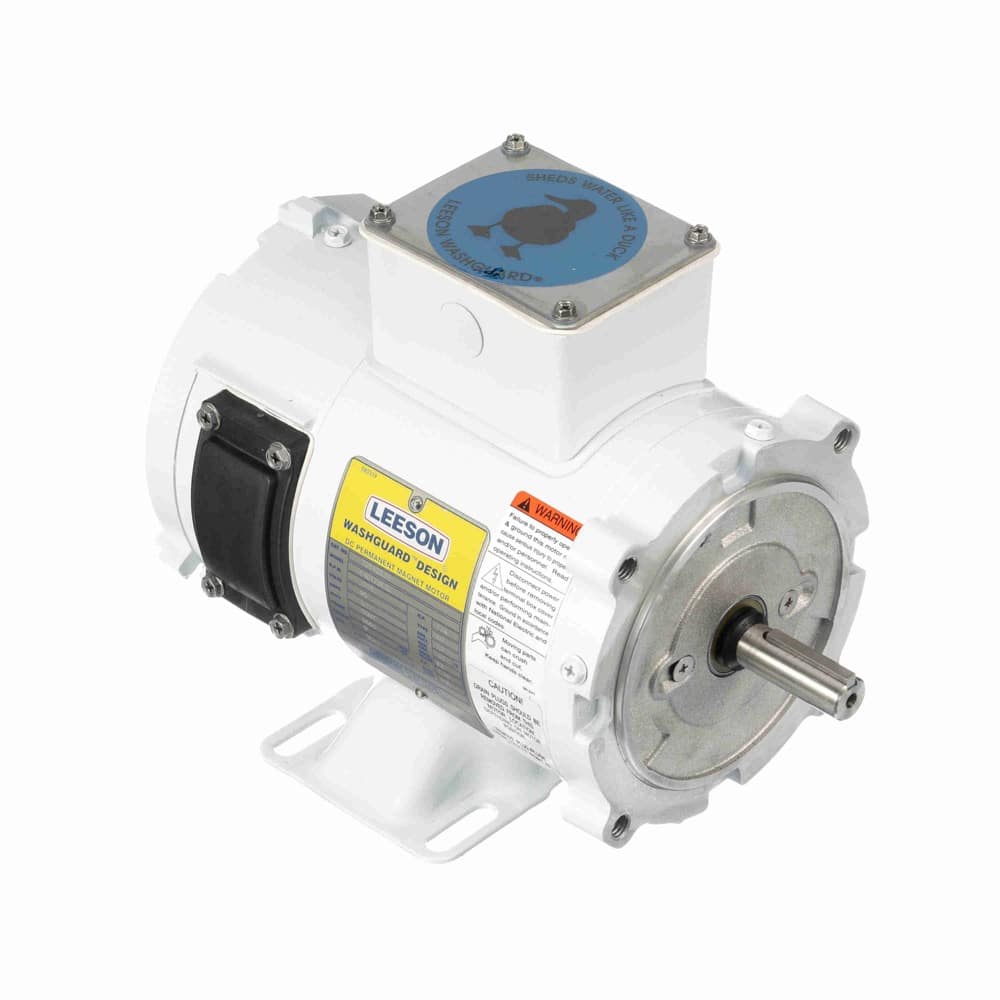

0.25HP 56C TENV 1750 90V WB DC
Mfr # 108423.00 | Wright’s # LSN 108423.00
1/4HP Washdown Motor, 56C Frame, 1750 RPM, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
108423.00
Wright's #
LSN 108423.00
Country of Origin
USA
Specifications
C Dim
10.63"
Enclosure
TENV
Full Load Efficiency
68
Frame
56C
HP
0.25 HP
HP2
1/4 HP
Insulation Class
F
kW
0.19kW
Max Ambient
40°C
Mounting Type
Rigid C Base
Overload Protection
No Protection
Rated Current
2.7
Rated Voltage
90
Rotation
Reversible
RPM
1750
Service Factor
1
Shaft Diameter
0.625"
Speed
1750
Description
Pressure encapsulation technology – winding end coils totally encapsulated
303 Stainless shaft
Double sealed bearings
FDA approved white finish coat
Stainless laser etched nameplate
304 stainless steel conduit box cover and fan cover
Repositionable drain plugs for use in multiple mounting positions
Nylon seals at bolt heads for superior sealing
PMAChined fits throughout
USDA approved white epoxy finish
