Leeson

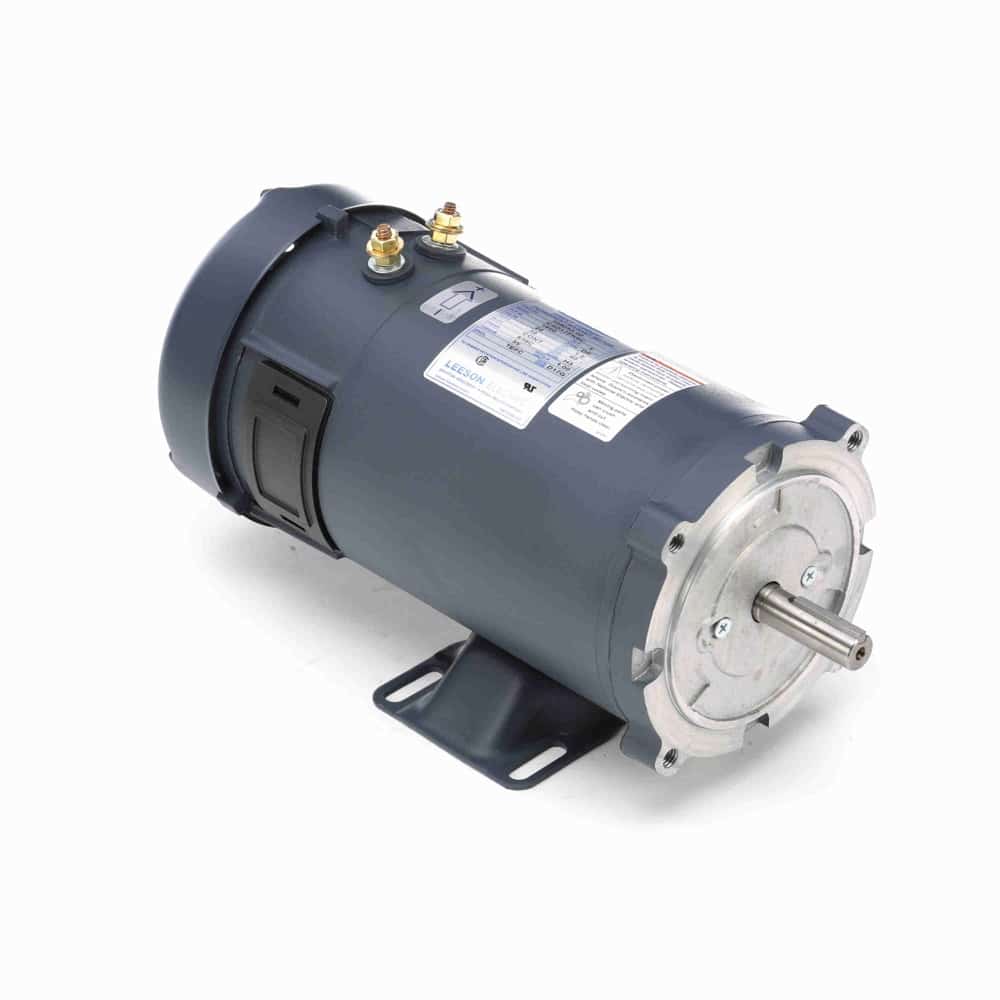

1HP 56C TEFC 1800 24V WB DC
Mfr # 108053.00 | Wright’s # LSN 108053.00
1HP Low Voltage DC Motor, 56C Frame, 1800 RPM, 24V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 108053.00
Wright's # LSN 108053.00
Country of Origin USA
Specifications
C Dim 13.82"
Enclosure TEFC
Full Load Efficiency 81.3
Frame 56C
HP 1 HP
HP2 1 HP
Insulation Class H
kW 0.75kW
Max Ambient 40°C
Mounting Type Rigid C Base
Overload Protection No Protection
Rated Current 39.0
Rated Voltage 24
Rotation Reversible
RPM 1800
Service Factor 1
Shaft Diameter 0.625"
Speed 1800
Description
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
