0.50HP 3PH 48Y TEFC 59 208-230/460V Gear
Mfr # 107034.00 | Wright’s # LSN 107034.00

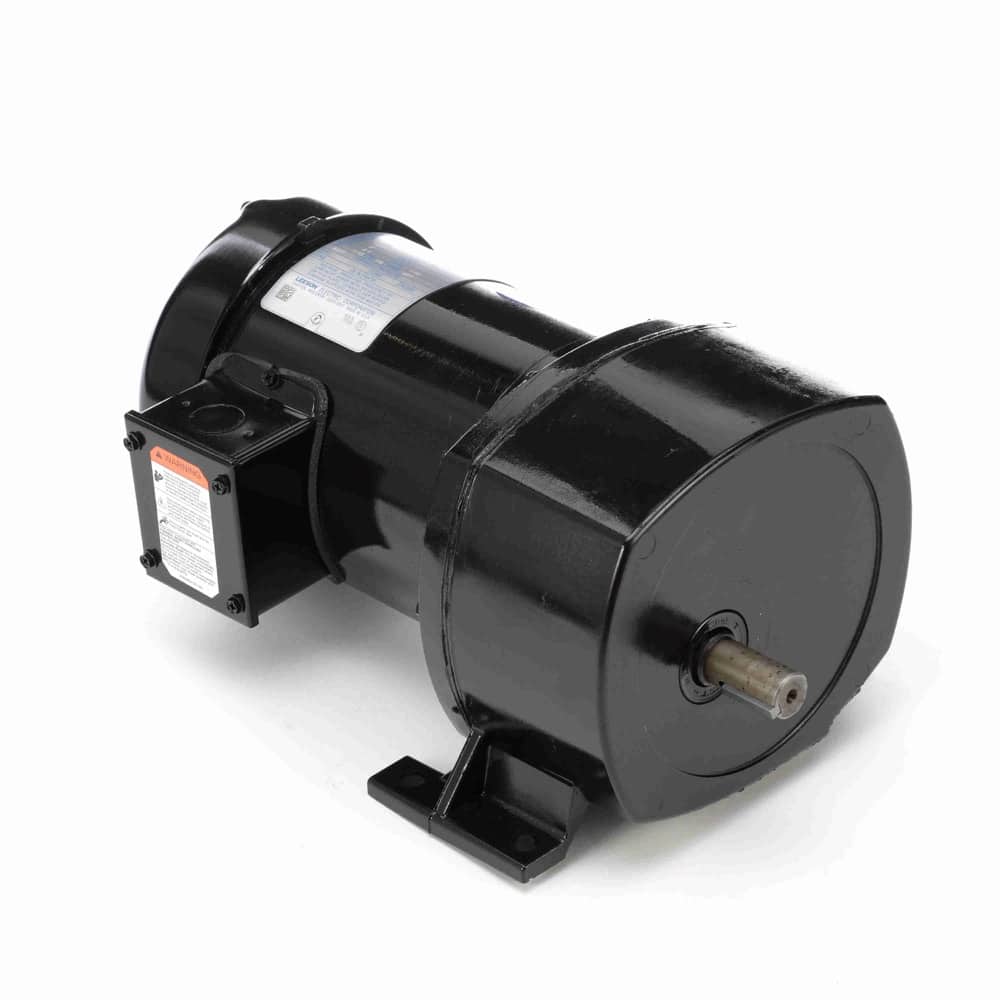

1/2HP Parallel Shaft Gear Motor, 3 Phase, 48Y Frame, 59 RPM, 208-230/460V, TEFC Enclosure
$1,089.77
Product Information
Specifications
Description
Rugged die cast aluminum gear housing for maximum gear and bearing support
Precision machined gearing, hardened for maximum load capability
All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
Oversized output bearings for greater overhung load capacity and long life
High carbon alloy output shaft provides maximum strength and rigidity
All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
Heavy duty industrial oil seals keep lubricant in and dirt out
Gears and bearings are splash lubricated with permanent, heavy duty gear oil
Conduit box included as standard
