Leeson

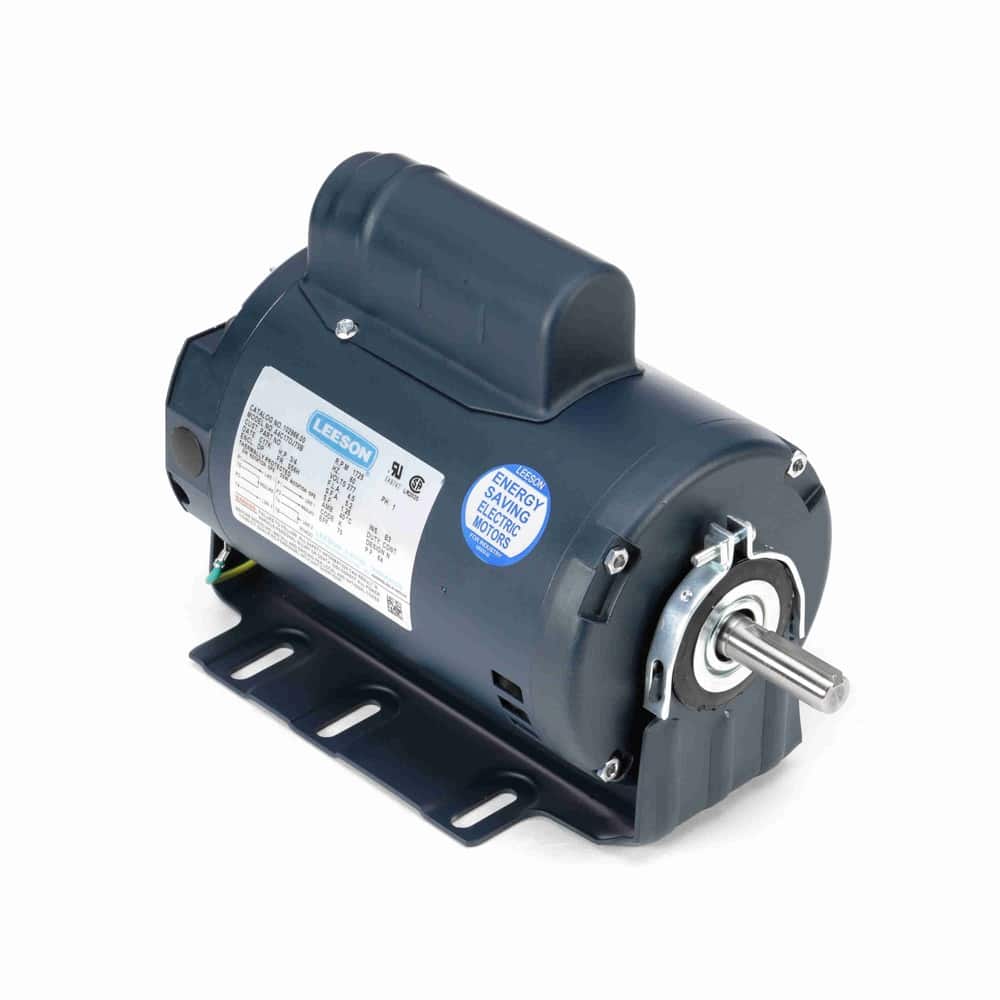

0.75HP 1PH 56H 4P DP 1725 277V AOL
Mfr # 102966.00 | Wright’s # LSN 102966.00
3/4HP Fan & Blower Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 277V, DP Enclosure, Automatic Overload Protection
$538.23
Product Information
Brand
Leeson
Mfr #
102966.00
Wright's #
LSN 102966.00
Country of Origin
MEX
Specifications
C Dim
11.81"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
70
Frame
56H
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.5
Rated Voltage
277
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
