Leeson

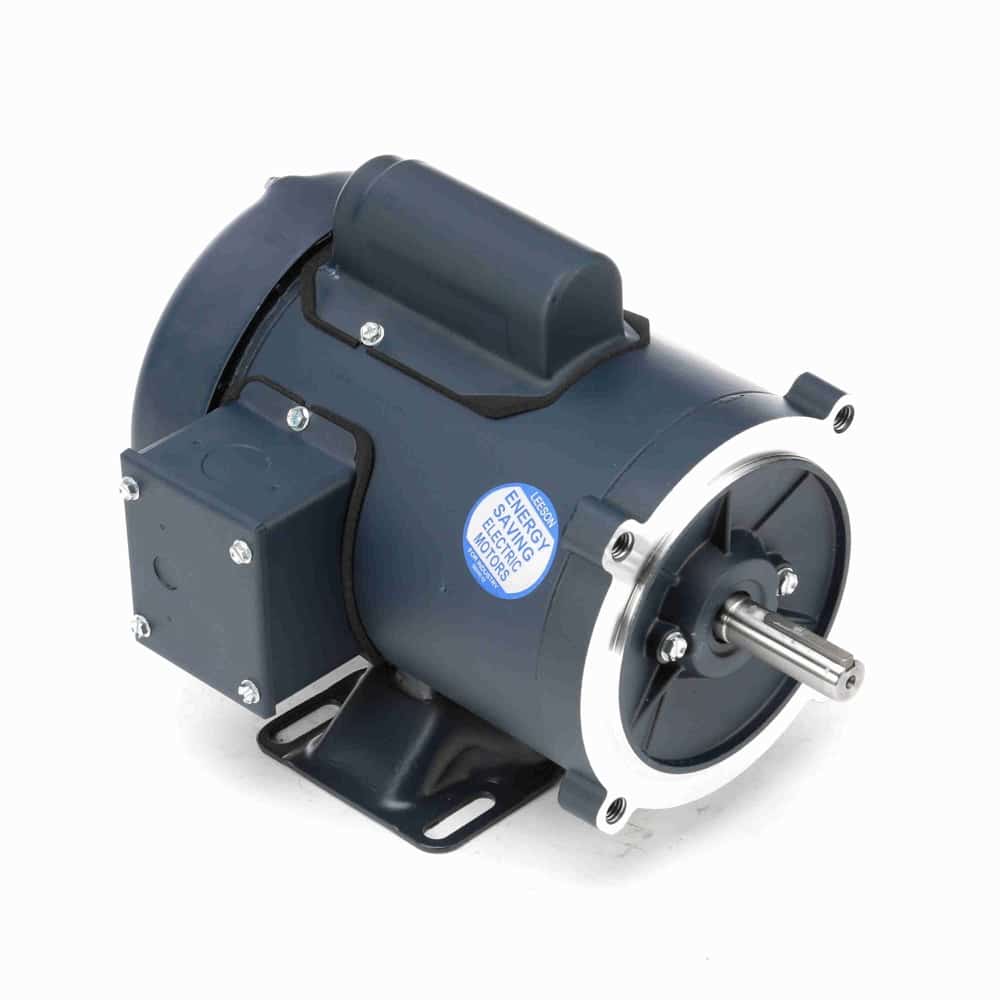

1/2HP 1PH 56C TEFC 1800 115/208-230V WB

Name: 1/2HP 1PH 56C TEFC 1800 115/208-230V WB
Brand: Leeson
SKU: 38191
Availability: InStock

Mfr # 102907.00 | Wright’s # LSN 102907.00

1/2HP General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, TEFC Enclosure

1 in stock

Sign in to access special pricing and availability.

$279.50

Product Information

Brand Leeson

Mfr # 102907.00

Wright's # LSN 102907.00

Country of Origin MEX

C Dim 10.69"

Electrical Type Capacitor Start Induction Run

Enclosure TEFC

Full Load Efficiency 66

Frame 56C

Frequency 60 Hz

HP 0.5 HP

HP2 1/2 HP

Insulation Class F

kW 0.37kW

Material Rolled Steel

Max Ambient 40°C

Mounting Type Rigid Base

Number of Poles 4

Number of Speeds 1

Overload Protection No Protection

Phase 1

Rated Current 8.0/4.4-4.0

Rated Voltage 115/208-230

Rotation Selective Counterclockwise

RPM 1725

Service Factor 1.15

Shaft Diameter 0.625"

Speed 1725

Starting Method
