Leeson
0.50HP 3PH 56C 4P TENV 1725 230/460V NB
Mfr # 102861.00 | Wright’s # LSN 102861.00

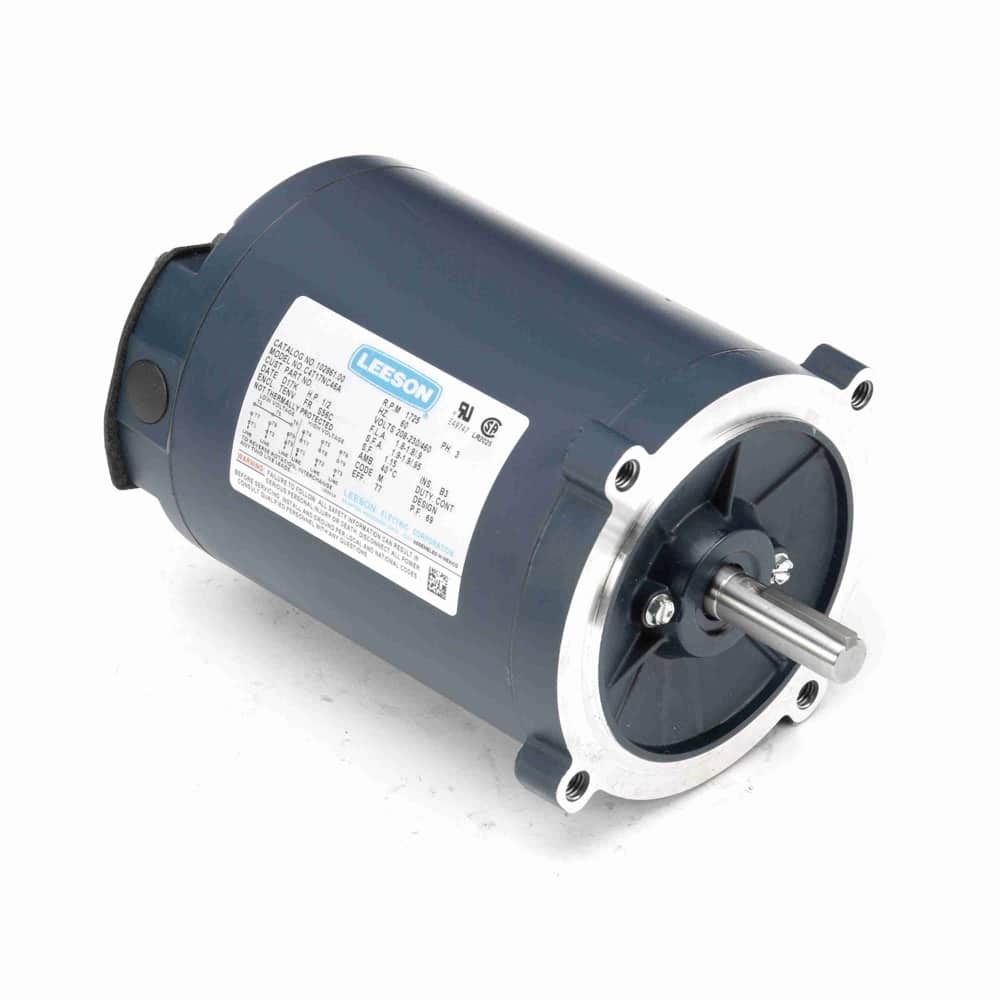

1/2HP General Purpose Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
102861.00
Wright's #
LSN 102861.00
Country of Origin
MEX
Specifications
C Dim
10.06"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TENV
Full Load Efficiency
77
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.8/0.90
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Suitable for belt-driven or fan-on-shaft applications.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
