Leeson
0.33HP 1PH 56C 4P TEFC 1725 115/230V NB
Mfr # 101766.00 | Wright’s # LSN 101766.00

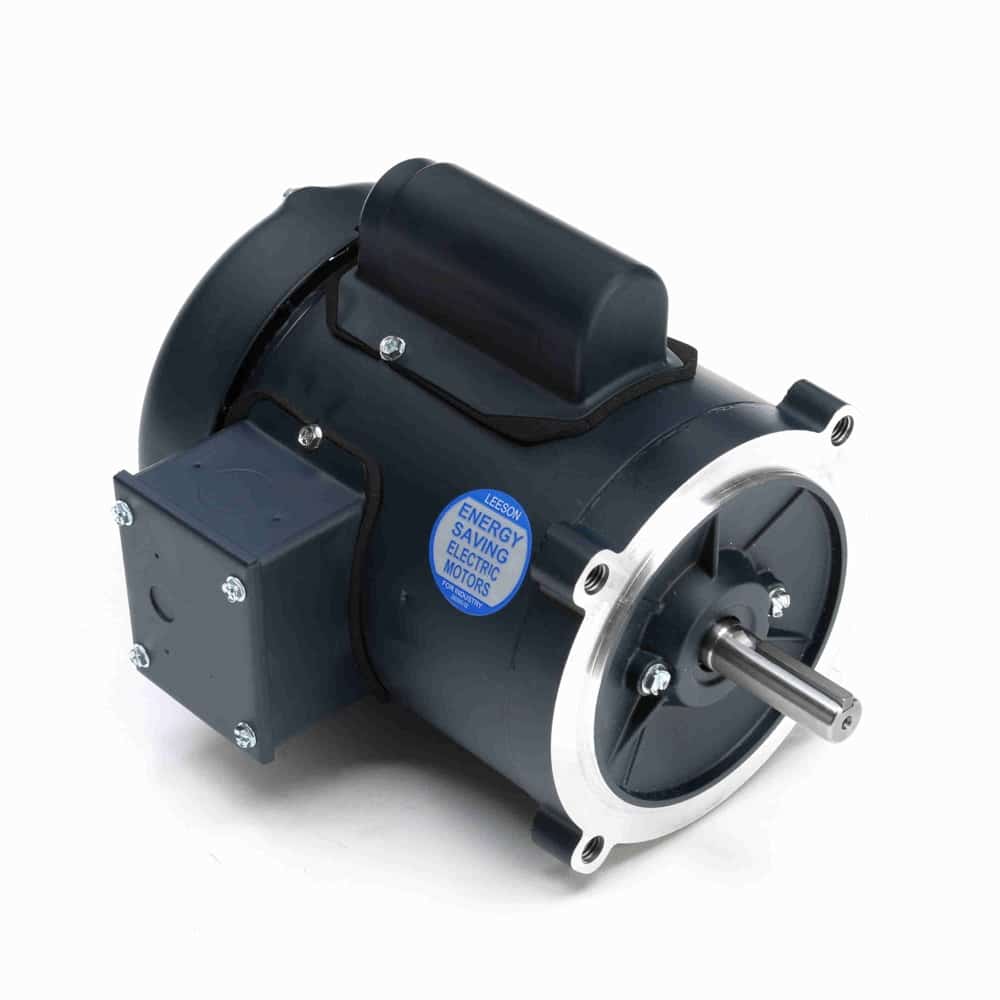

1/3HP General Purpose Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
$393.19
Product Information
Brand
Leeson
Mfr #
101766.00
Wright's #
LSN 101766.00
Country of Origin
MEX
Specifications
C Dim
9.94"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
61
Frame
56C
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
6.6/3.3
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specificationsÂ
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
