Leeson
1/4HP 1PH 48Z TEAO 1075 PSC 115/230V AOL Farm
Mfr # 100824.00 | Wright’s # LSN 100824.00

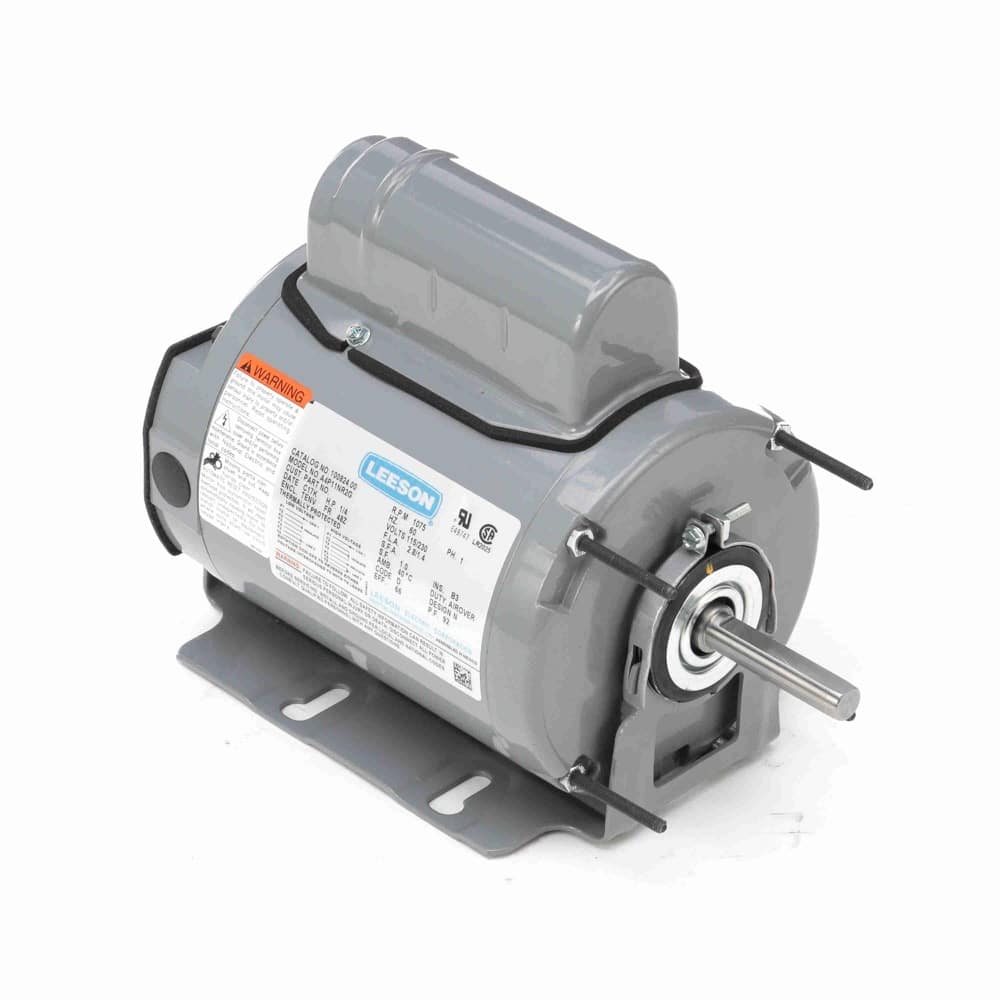

1/4HP Farm Duty Motor, 1 Phase, 48Z Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, TEAO Enclosure, Automatic Overload Protection
$77.10
Product Information
Brand
Leeson
Mfr #
100824.00
Wright's #
LSN 100824.00
Country of Origin
MEX
Specifications
C Dim
10.66"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Full Load Efficiency
66
Frame
48Z
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.8/1.4
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
