Leeson

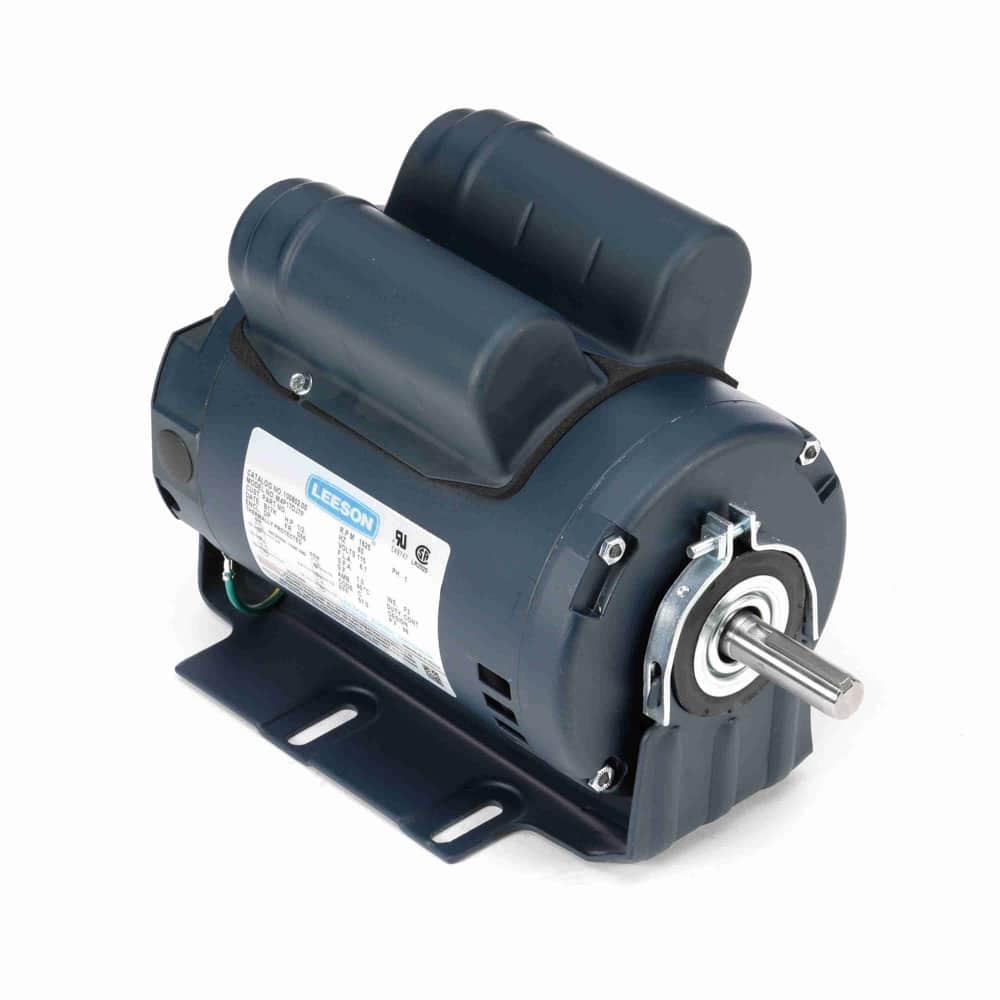

0.50HP 1PH 56 4P DP 1625 PSC 115V MOL
Mfr # 100802.00 | Wright’s # LSN 100802.00
1/2HP Instant Reversing Motor, 1 Phase, 56 Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 115V, DP Enclosure, Manual Overload Protection
$507.64
Product Information
Brand
Leeson
Mfr #
100802.00
Wright's #
LSN 100802.00
Country of Origin
MEX
Specifications
C Dim
11.31"
Electrical Type
Permanent Split Capacitor
Enclosure
DP
Full Load Efficiency
57.5
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
6.1
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1625
Service Factor
1
Shaft Diameter
0.625"
Speed
1625
Starting Method
Description
Manual overload protected
Instant “plug-reversing” with simple three-wire connection
Approximately 150% starting torque-not suitable for hard start applications
