Leeson

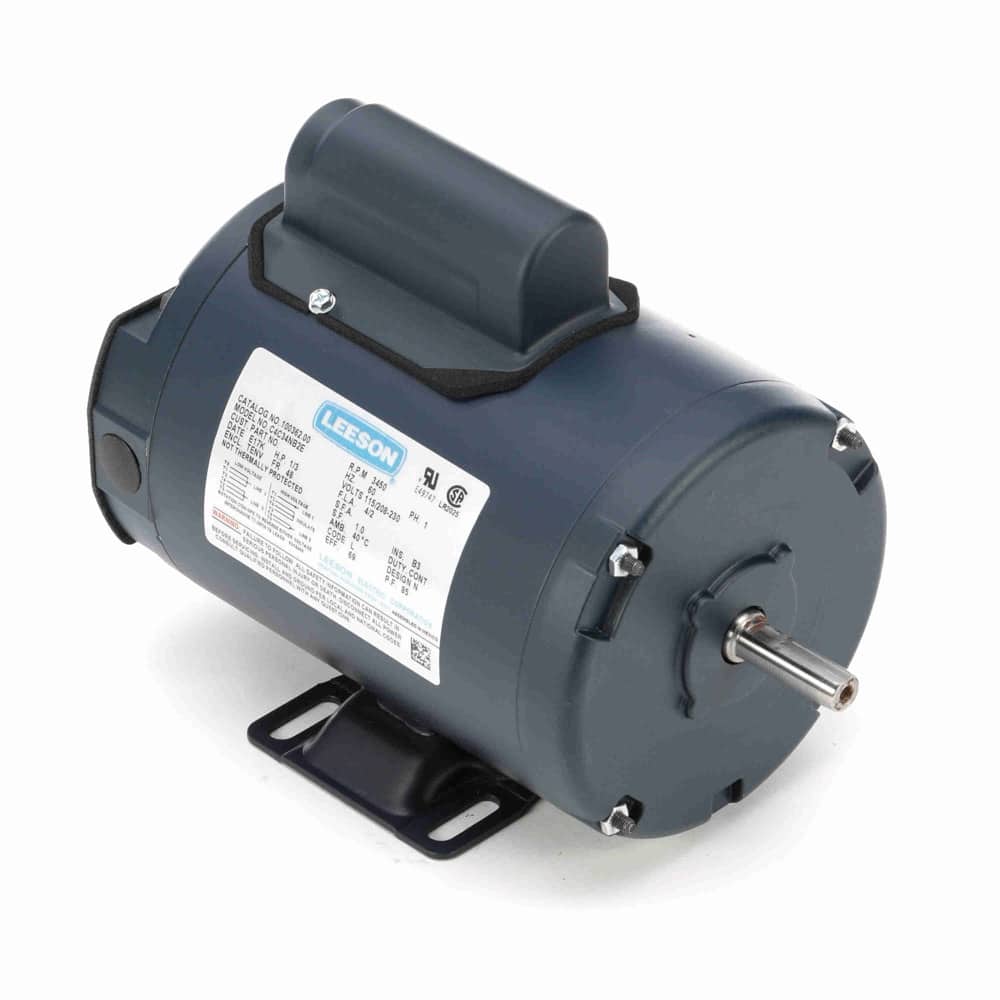

0.33HP 1PH 48 2P TENV 3450 115/230V
Mfr # 100362.00 | Wright’s # LSN 100362.00
1/3HP General Purpose Motor, 1 Phase, 48 Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 100362.00
Wright's # LSN 100362.00
Country of Origin MEX
Specifications
C Dim 9.93"
Electrical Type Capacitor Start Induction Run
Enclosure TENV
Full Load Efficiency 69
Frame 48
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 4.0/2.0
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.5"
Speed 3450
Starting Method
Description
Durable rolled steel construction
NEMA ® Desing B performance
Meets or exceed NEMA service factors
Double shielded ball bearings
Continuous duty
UL recognized component listing and CSA certified
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
