Leeson
0.33HP 1PH 56 2P DP 3450 115/208-230V
Mfr # 100336.00 | Wright’s # LSN 100336.00

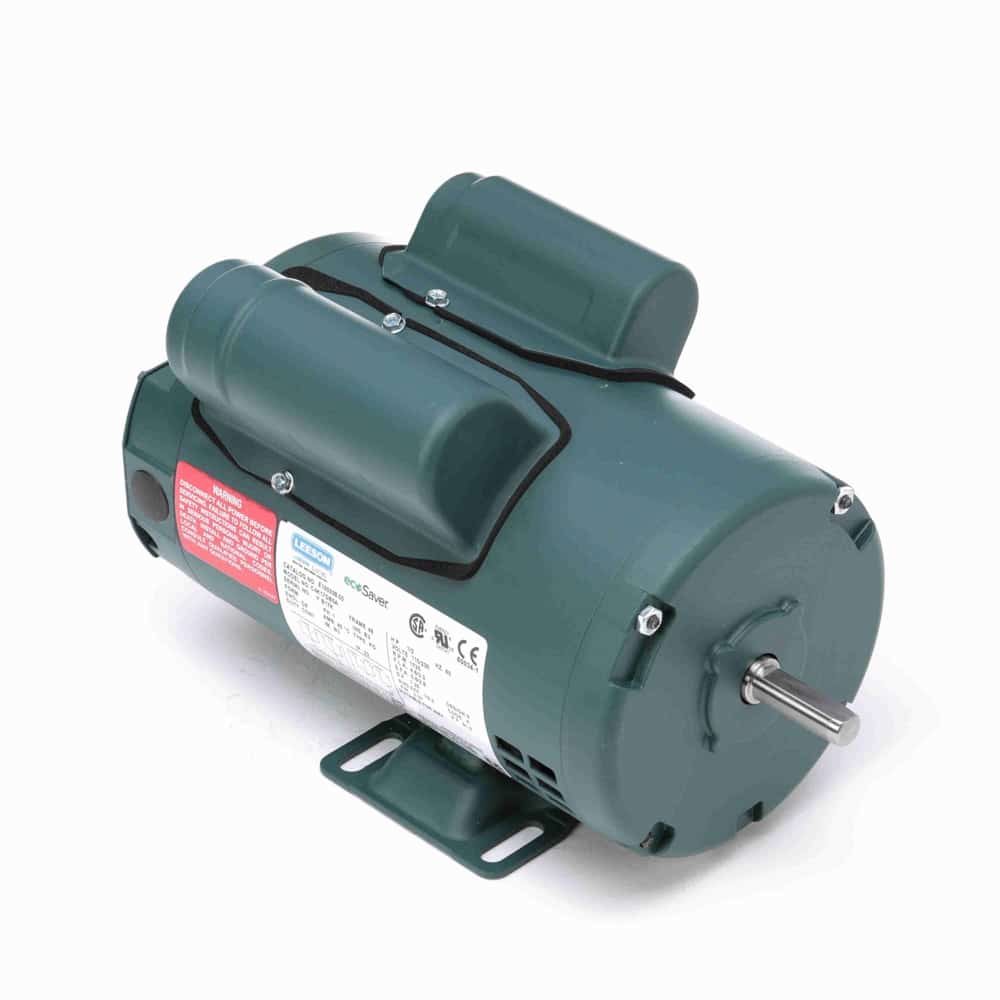

1/3HP General Purpose Motor, 1 Phase, 56 Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
100336.00
Wright's #
LSN 100336.00
Country of Origin
MEX
Specifications
C Dim
8.99"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
63
Frame
56
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
5.6/2.5-2.8
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.35
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Durable rolled steel construction
NEMA design B performance
Meets or exceeds NEMA service factors
Double shielded ball bearings
Continuous duty
Thermally protected ratings
UL recognized component listing and CSA certified
