Leeson

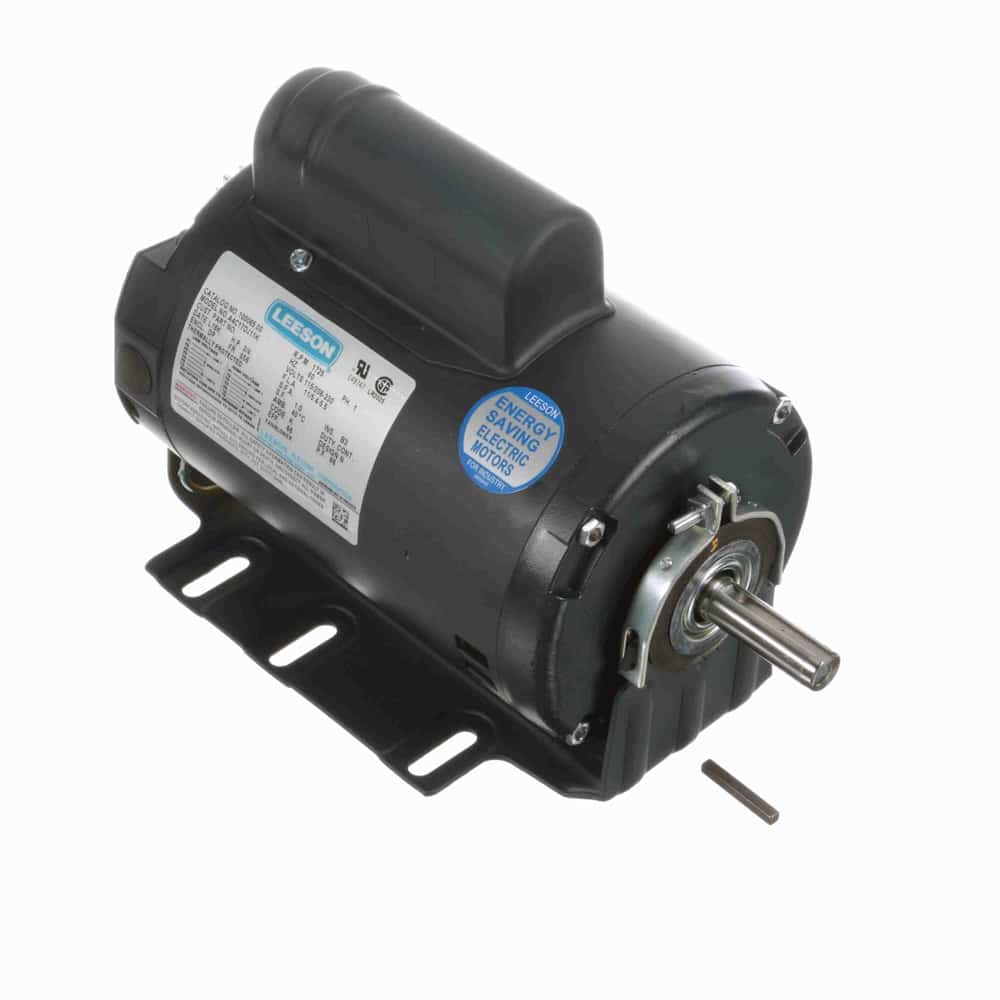

0.75HP 1PH 56 4P DP 1725 115/208-230V AOL
Mfr # 100065.00 | Wright’s # LSN 100065.00
3/4HP General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
100065.00
Wright's #
LSN 100065.00
Country of Origin
MEX
Specifications
C Dim
11.81"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
66
Frame
56
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
11.0/5.4-5.5
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
