Leeson
0.50HP 56C TEFC 1750 180V WB DC
Mfr # 098008.00 | Wright’s # LSN 098008.00

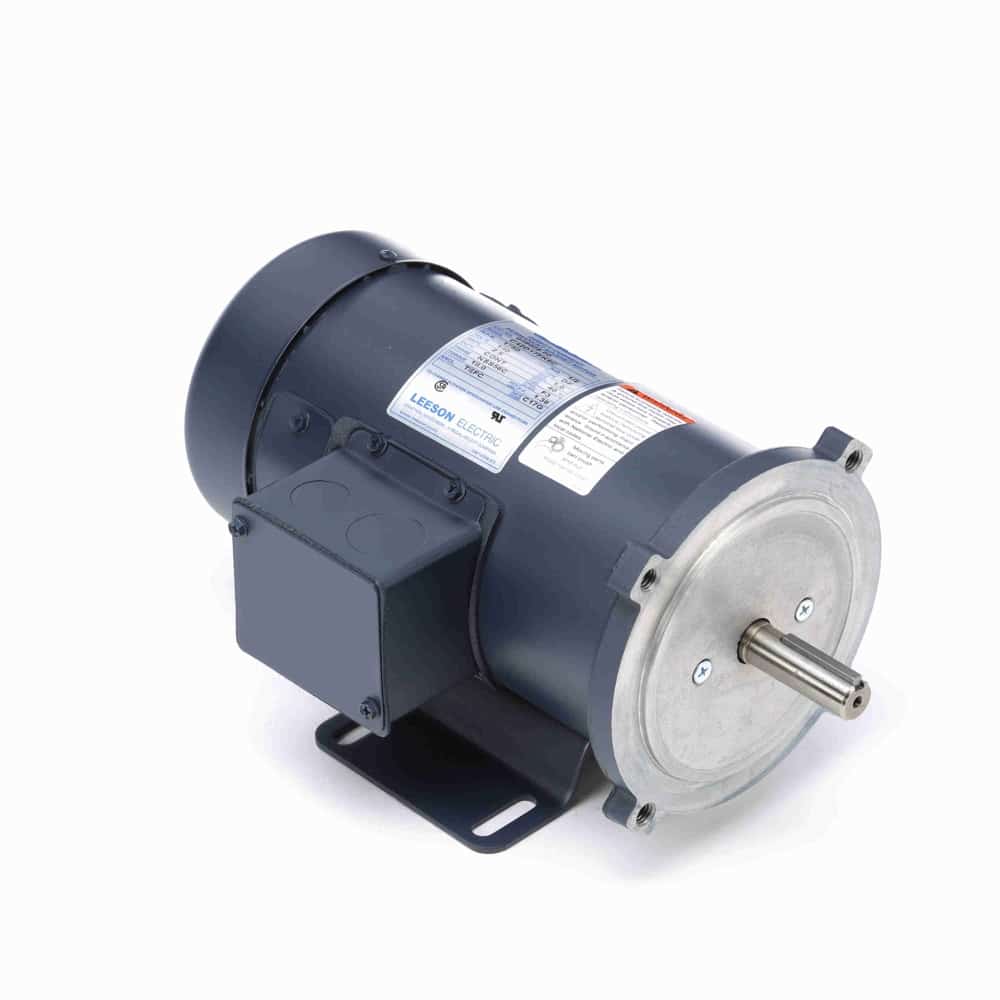

1/2HP DC SCR Motor, 56C Frame, 1750 RPM, 180V, TEFC Enclosure
$475.12
Product Information
Brand
Leeson
Mfr #
098008.00
Wright's #
LSN 098008.00
Country of Origin
USA
Specifications
C Dim
11.81"
Enclosure
TEFC
Full Load Efficiency
83.7
Frame
56C
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Max Ambient
40°C
Mounting Type
Rigid C Base
Overload Protection
No Protection
Rated Current
2.5
Rated Voltage
180
Rotation
Reversible
RPM
1750
Service Factor
1
Shaft Diameter
0.625"
Speed
1750
Description
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
