Genteq

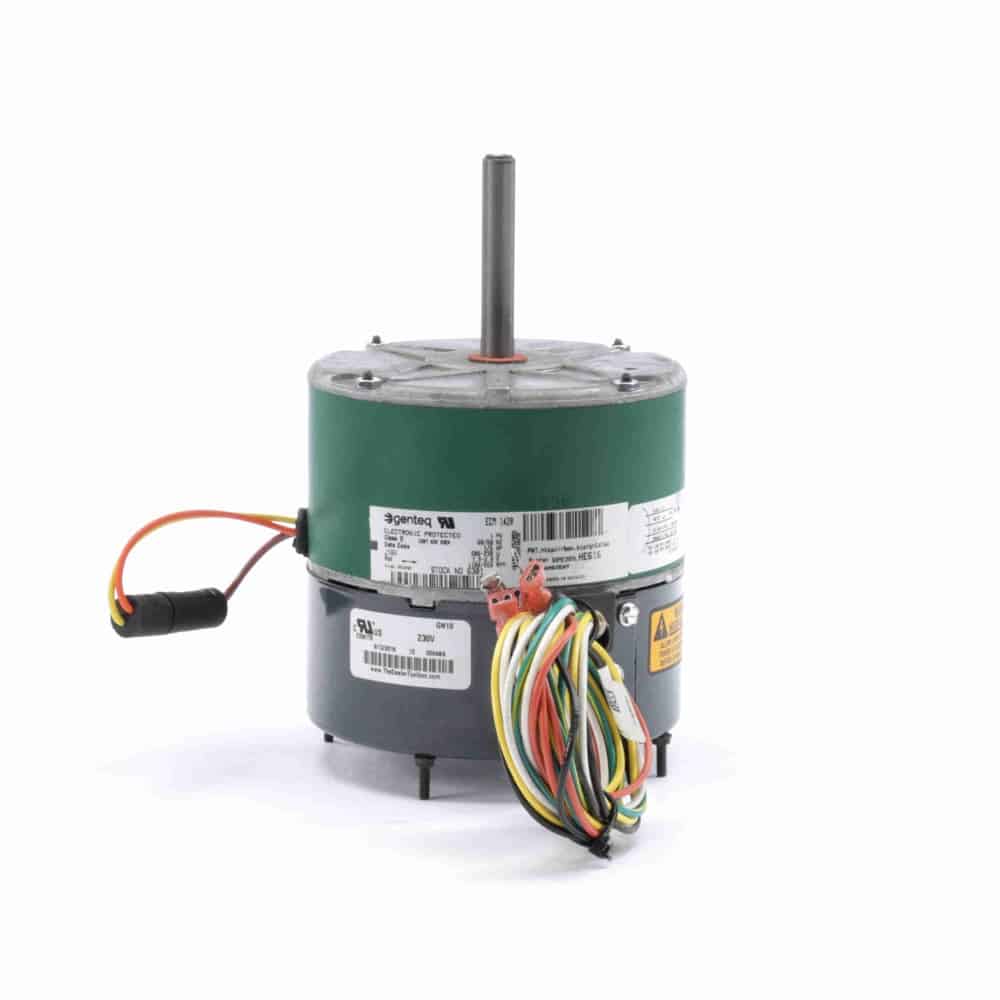

1/5HP ECM 5.6″ TE 2spd 850 REV 208-230V CF
Mfr # 6301 | Wright’s # GEN 6301
1/5HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 850 RPM, 2 Speed, Electronically Commutated Motor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Sub-Brand
EVERGREEN® OM
Mfr #
6301
Wright's #
GEN 6301
Country of Origin
MEX
Specifications
C Dim
8.49"
Electrical Type
Electronically Commutated Motor
Enclosure
TEAO
Frame
5.6"
Frequency
60/50 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
12
Number of Speeds
2
Overload Protection
No Protection
Phase
1
Rated Current
2.8
Rated Voltage
208-230
Rotation
Counterclockwise/Clockwise
RPM
850
Service Factor
1
Shaft Diameter
0.5"
Speed
850/1100
Description
Evergreen OM – Retrofit Condenser Fan Motor
5.6″ Diameter – 48 Frame
Electronically Commutated (ECM)
Electronically Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatП” Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
