Genteq

3/4HP ECM 5.6″ OAO 1075 REV 208-230V BM

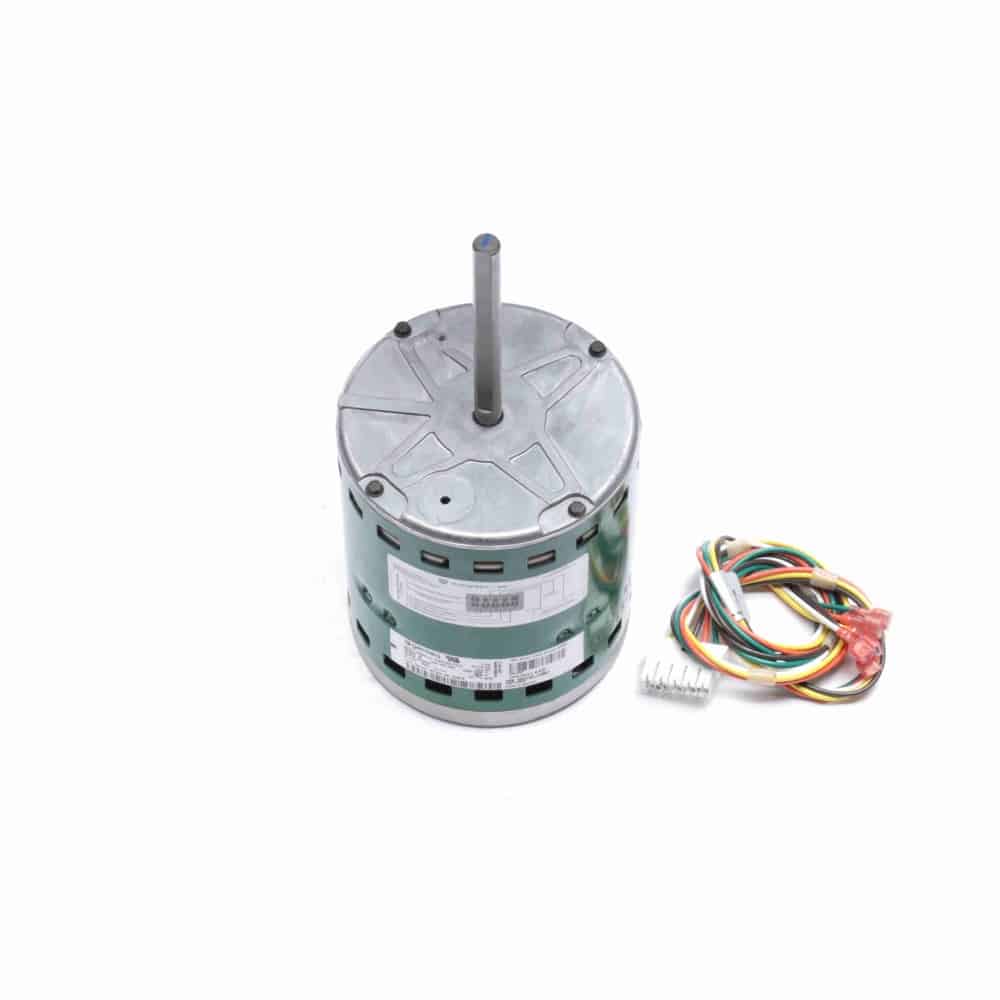

Name: 3/4HP ECM 5.6" OAO 1075 REV 208-230V BM
Brand: Genteq
SKU: 28029
Availability: InStock

Mfr # 6207E | Wright’s # GEN 6207E

3/4HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Electronically Commutated Motor, 208-230V, OAO Enclosure

$354.48

Product Information

Brand Genteq

Sub-Brand EVERGREEN® EM

Mfr # 6207E

Wright's # GEN 6207E

Specifications

C Dim 11.45"

Electrical Type Electronically Commutated Motor

Enclosure OAO

Frame 5.6"

Frequency 60/50 Hz

HP 0.75 HP

HP2 3/4 HP

Insulation Class B

kW 0.56kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 12

Number of Speeds 1

Overload Protection No Protection

Phase 1

Rated Current 6.0

Rated Voltage 208-230

Rotation Counterclockwise/Clockwise

RPM 1075

Service Factor 1

Shaft Diameter 0.5"

Speed 1075

Description

Evergreen EM – ECM Replacement Blower Motor
5.6″ Diameter – 48 Frame
Electronically Commutated (ECM), Electronically Protected
Up to five constant torque settings controlled by 24 VAC inputs
Fully variable (PWM compatible) from 600-1100 RPM
Open Air Over, Class B Insulation, 45°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatВ” Leads
Belly Band Mount (Belly Band Not Included)

Documents

Data Sheet

3/4HP ECM 5.6″ OAO 1075 REV 208-230V BM
