Genteq

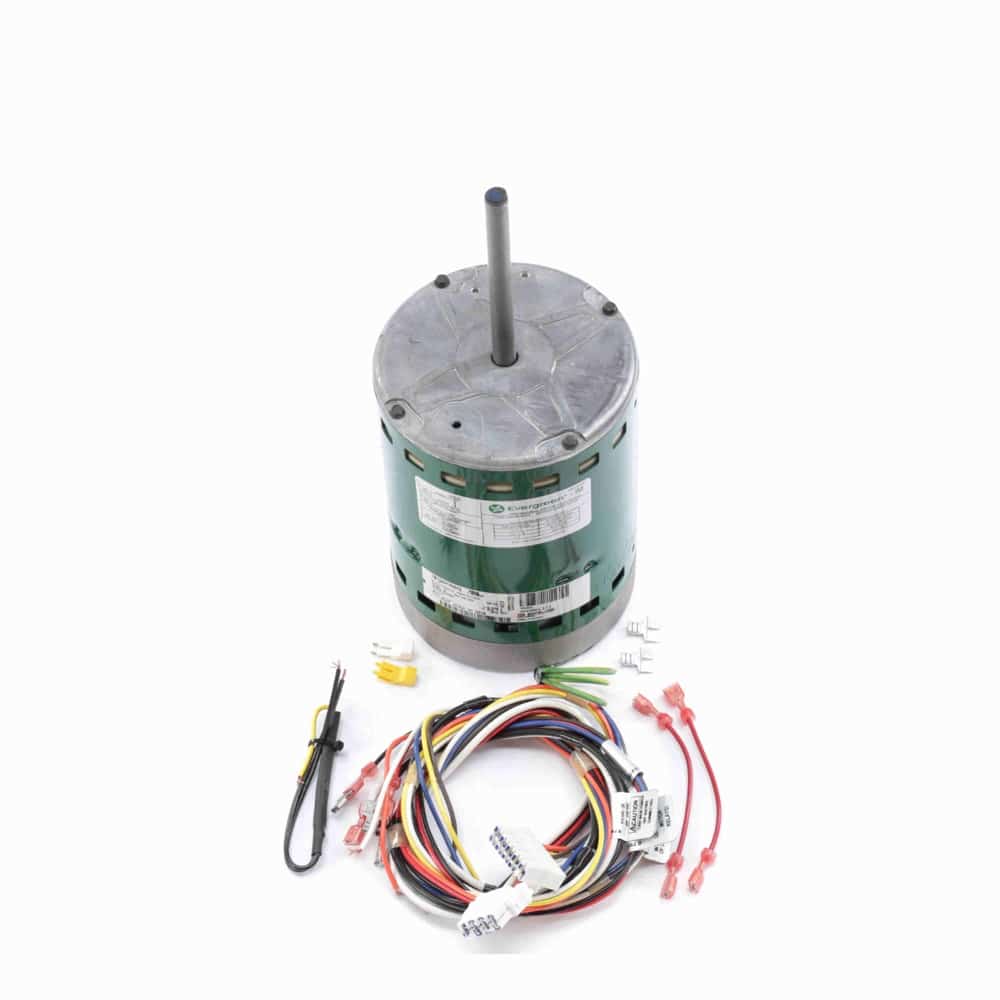

1HP ECM 5.6″ OAO 1075 REV 115/230V BM
Mfr # 6010 | Wright’s # GEN 6010
1-1/2HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Electronically Commutated Motor, 115/230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Sub-Brand
EVERGREEN® IM
Mfr #
6010
Wright's #
GEN 6010
Country of Origin
MEX
Specifications
C Dim
12.76"
Electrical Type
Electronically Commutated Motor
Enclosure
OAO
Frame
5.6"
Frequency
60/50 Hz
HP
1 HP
HP2
1-1/2 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
12
Number of Speeds
1
Overload Protection
Electronically Protected
Phase
1
Rated Current
11.0/6.7
Rated Voltage
115/230
Rotation
Counterclockwise/Clockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Evergreen IM – Retrofit Blower Motor
5.6″ Diameter – 48 Frame
Electronically Commutated (ECM)
Electronically Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatВ” Leads
Belly Band Mount (Belly Band Not Included)
