Genteq

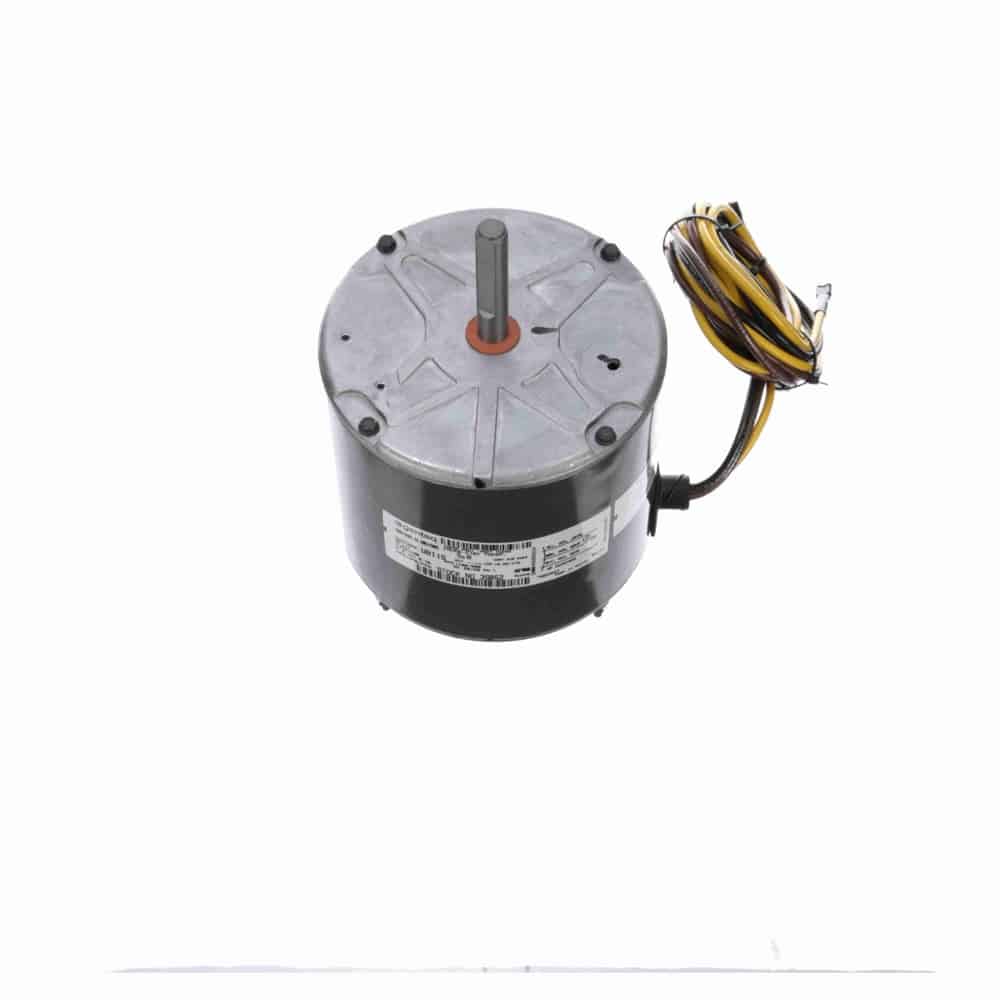

1/4HP PSC 5.6″ TE 1100 CCWSE 460/400V 10uF

Mfr # 3S052 | Wright’s # GEN 3S052

1/4HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 460/400V, TE Enclosure

$144.32

Product Information

Brand Genteq
Mfr # 3S052
Wright's # GEN 3S052
Country of Origin MEX

Specifications

C Dim 7.81"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6"
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.70/0.70
Rated Voltage 460/400
Rotation Clockwise
RPM 1100
Service Factor 1
Shaft Diameter 0.5"
Speed 1100/900

Description

Documents
