Genteq

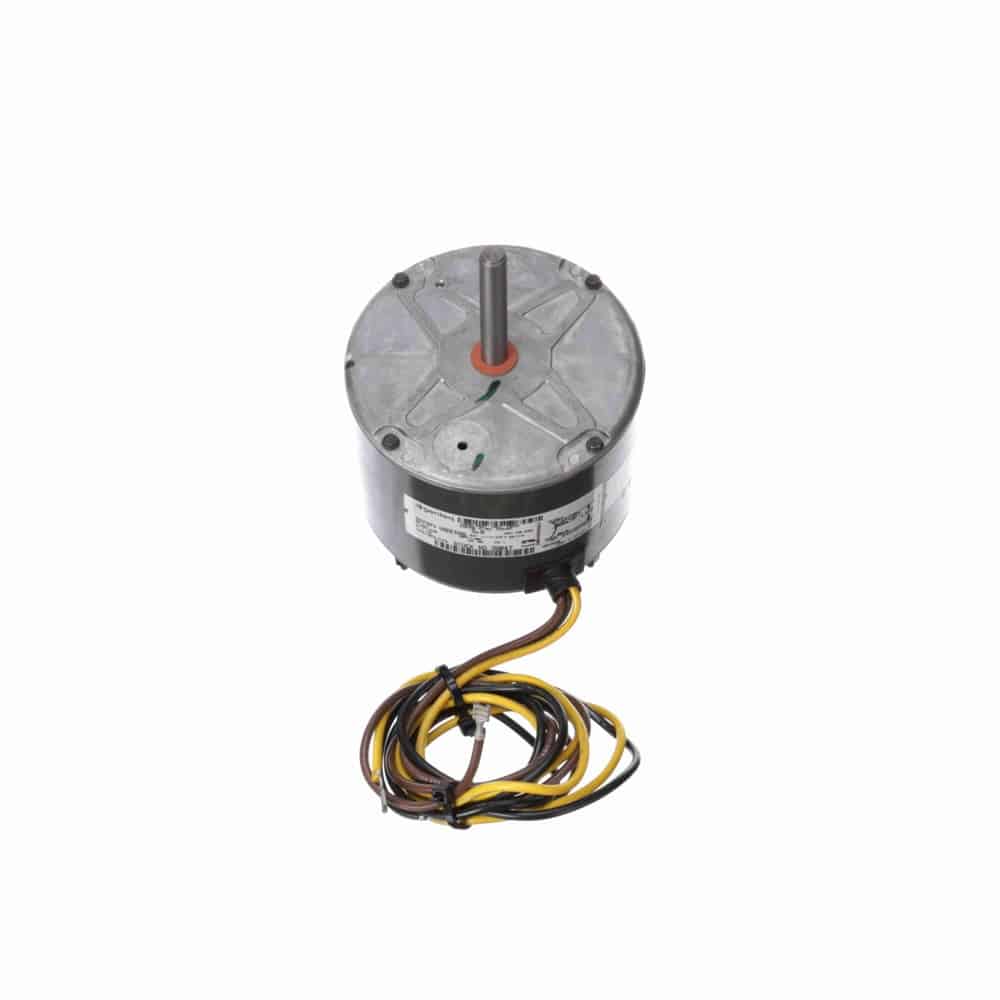

1/4HP PSC 5.6″ TE 1100 CCWSE 208-230V 5uF
Mfr # 3S047 | Wright’s # GEN 3S047
1/4HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3S047
Wright's #
GEN 3S047
Country of Origin
MEX
Specifications
C Dim
7.31"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.40
Rated Voltage
208-230
Rotation
Clockwise
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
