Genteq

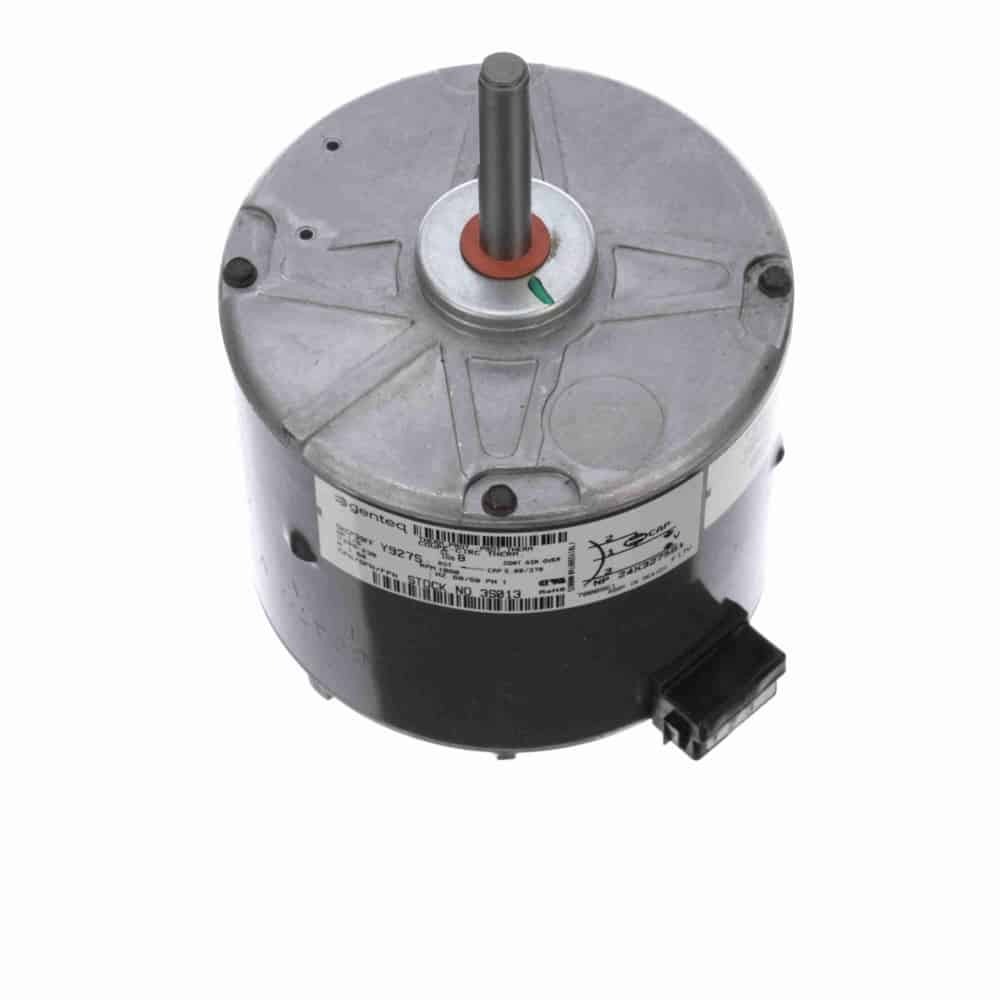

1/5HP PSC 5.6″ TE 1080 CWSE 200-230V 5uF
Mfr # 3S013 | Wright’s # GEN 3S013
1/5HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1080 RPM, 1 Speed, Permanent Split Capacitor, 200-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3S013
Wright's #
GEN 3S013
Country of Origin
MEX
Specifications
C Dim
8.14"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.60
Rated Voltage
200-230
Rotation
Counterclockwise
RPM
1080
Service Factor
1
Shaft Diameter
0.5"
Speed
1080
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flat
Terminals Block
Belly Band
