Genteq

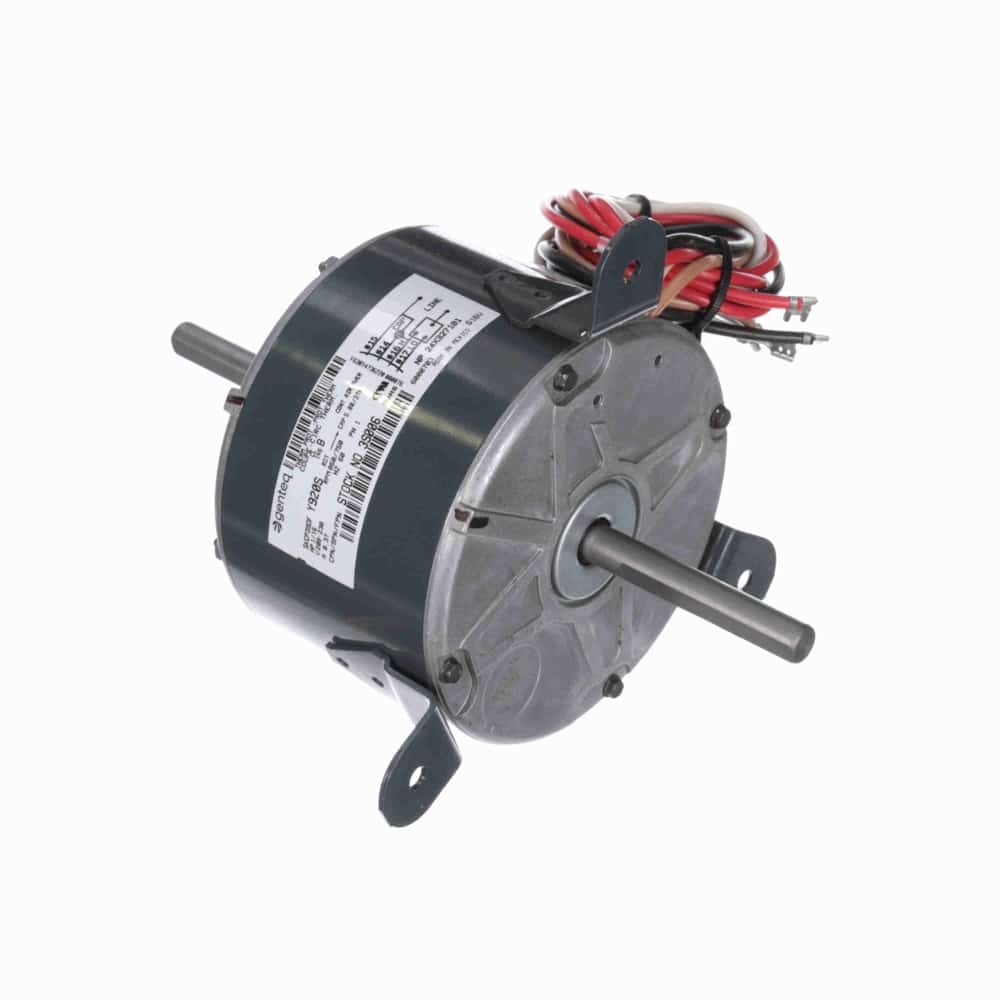

1/15HP PSC 5.6″ TE 2spd 850 CCWSE 208-230V 5uF
Mfr # 3S006 | Wright’s # GEN 3S006
1/15HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 850 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
$177.52
Product Information
Brand
Genteq
Mfr #
3S006
Wright's #
GEN 3S006
Country of Origin
MEX
Specifications
C Dim
10.3"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.37
Rated Voltage
208-230
Rotation
Clockwise
RPM
850
Service Factor
1
Shaft Diameter
0.5"
Speed
850/750
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
Dual Extension, 1/2″ Diameter Shaft with FlatЂ” and 38″ Leads
Rigid Lug
