Genteq
1/3HP PSC 5.6″ OAO 4spd 1075 REV 277/230V 5uF-inc BM
Mfr # 3D003 | Wright’s # GEN 3D003
1/3HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 277/230V, OAO Enclosure
$218.17
Product Information
Brand
Genteq
Mfr #
3D003
Wright's #
GEN 3D003
Specifications
C Dim
12.39"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.87
Rated Voltage
277/230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075

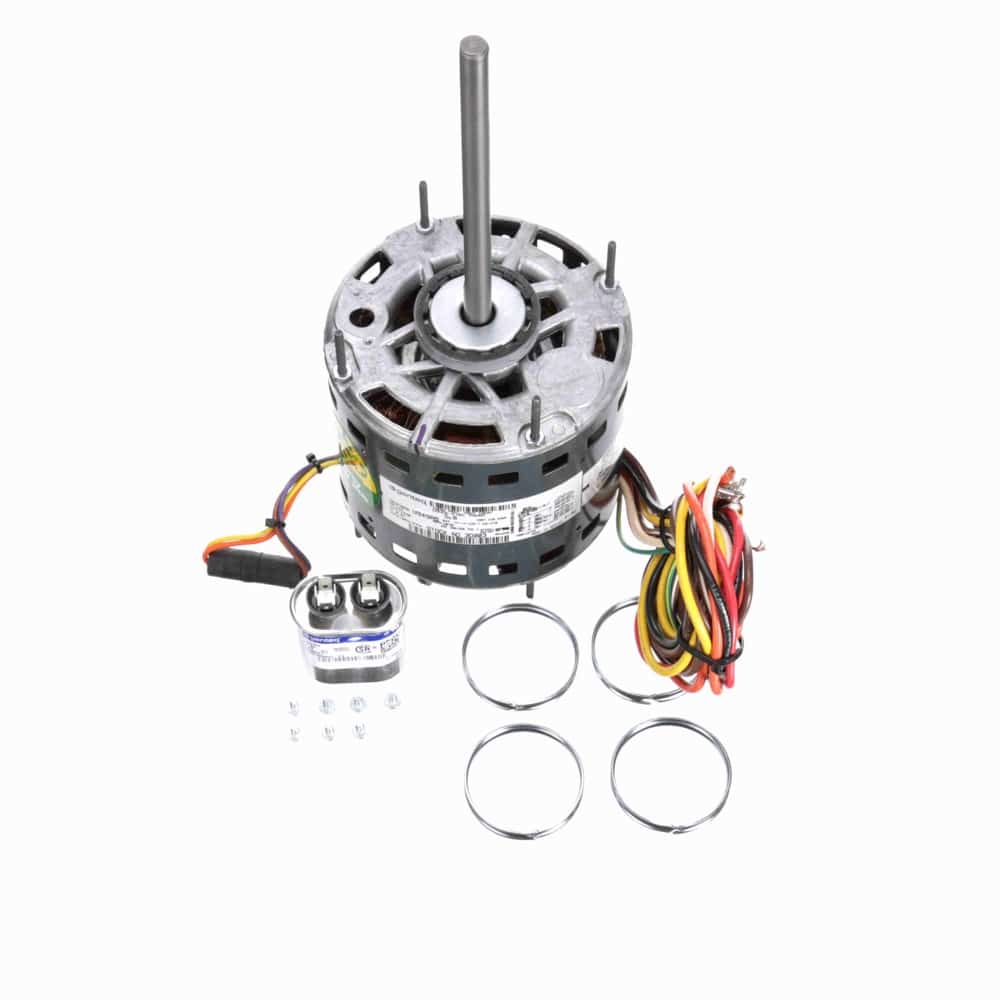

Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
