Genteq
1/4HP PSC 5.6″ TE 2spd 1625 REV 208-230V 5uF CF
Mfr # 3C001 | Wright’s # GEN 3C001

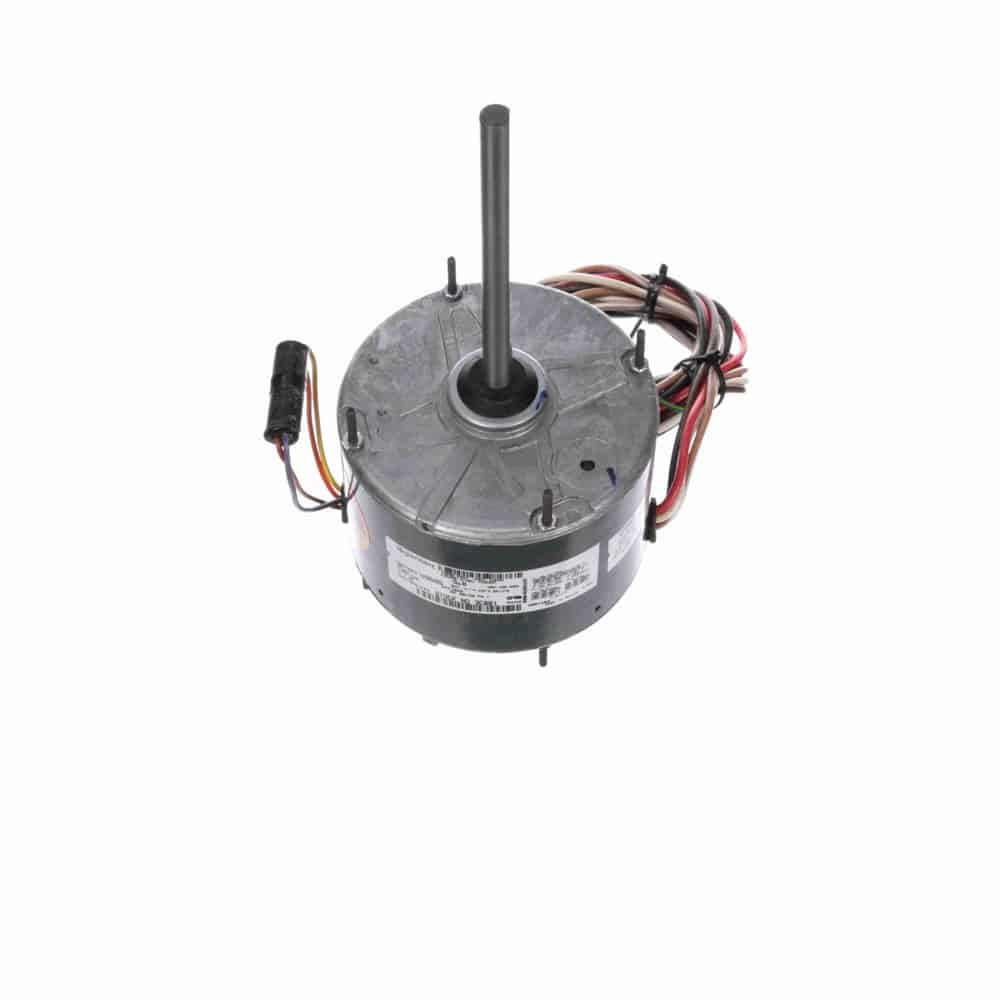

1/4HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3C001
Wright's #
GEN 3C001
Specifications
C Dim
11.21"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.30
Rated Voltage
208-230
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
