Genteq

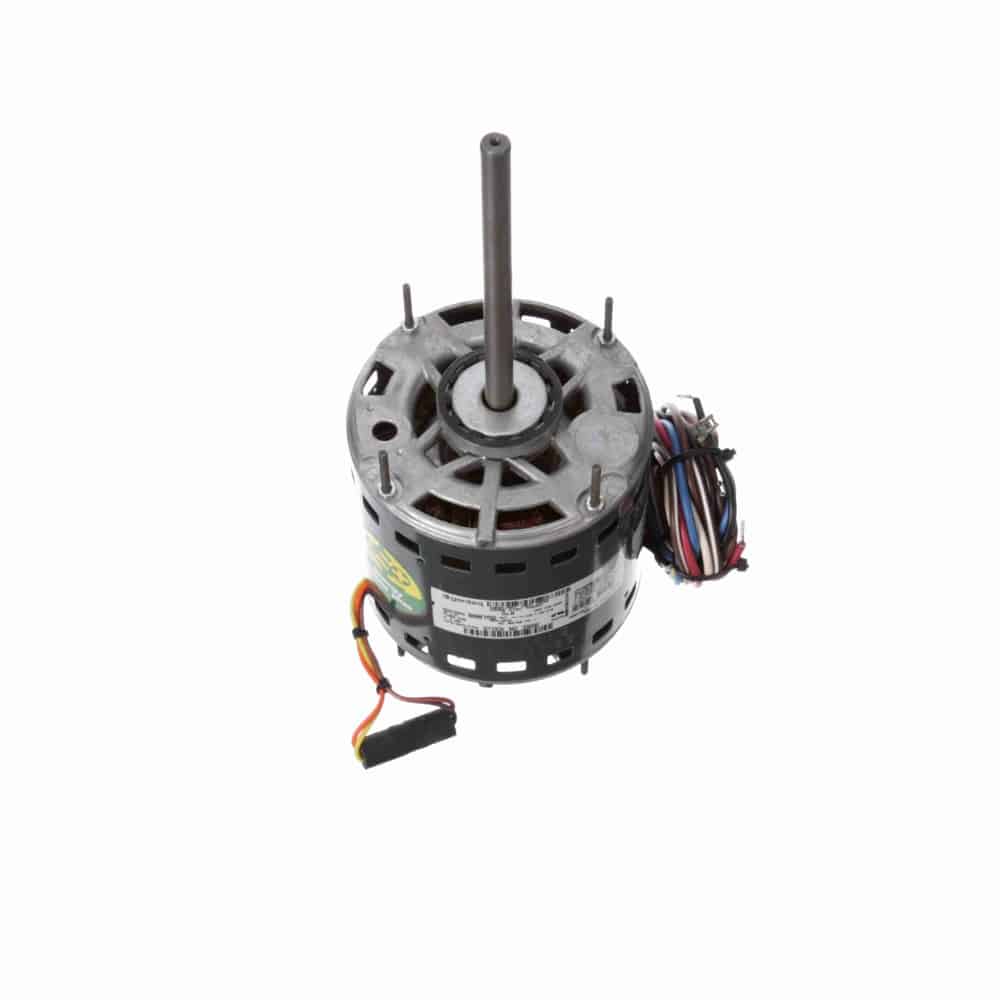

1/2HP PSC 5.6″ OAO 3spd 1075 REV 208-230V 5uF BM
Mfr # 3988 | Wright’s # GEN 3988
1/2HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3988
Wright's #
GEN 3988
Specifications
C Dim
12.89"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.80
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
