Genteq

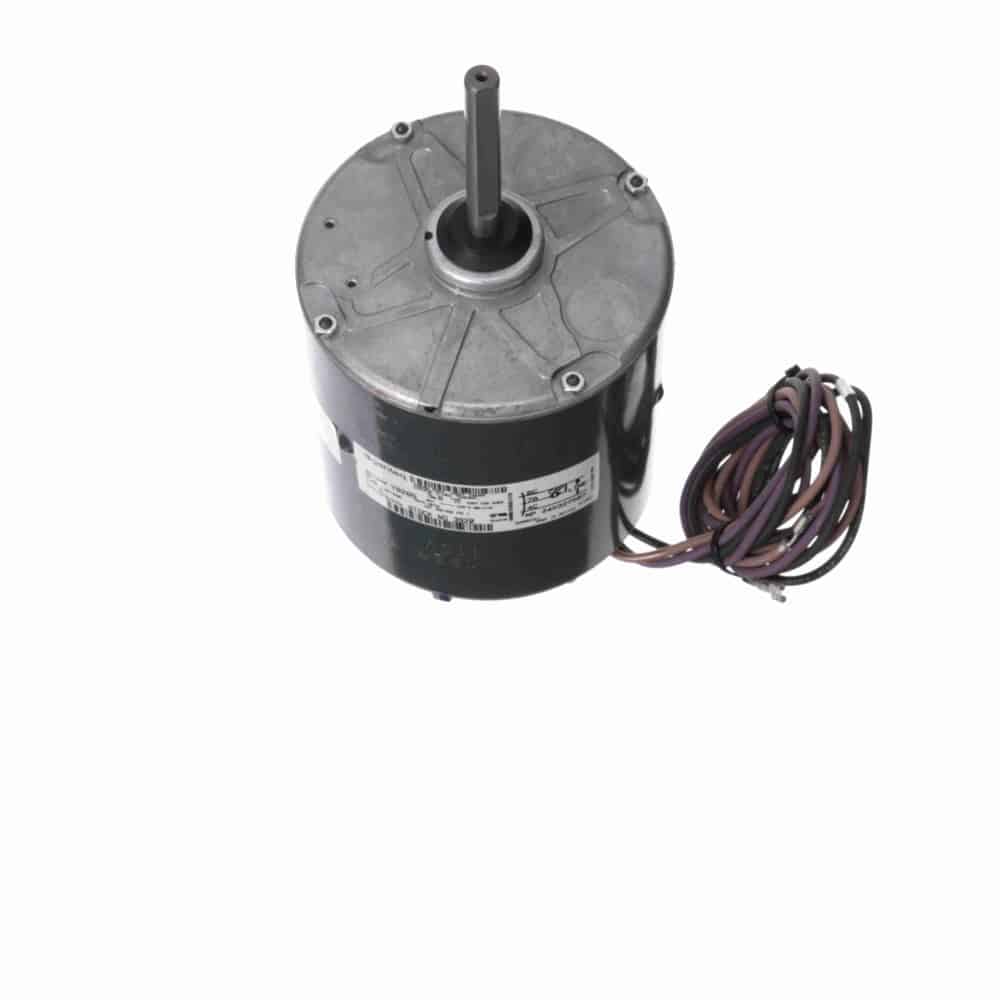

2/5HP PSC 5.6″ TE 1075 CWSE 380-415/460V 5uF
Mfr # 3920 | Wright’s # GEN 3920
2/5HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 380-415/460V, TE Enclosure
$197.78
Product Information
Brand
Genteq
Mfr #
3920
Wright's #
GEN 3920
Country of Origin
MEX
Specifications
C Dim
10.39"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5.6"
Frequency
60 Hz
HP
0.4 HP
HP2
2/5 HP
Insulation Class
B
kW
0.3kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.40
Rated Voltage
380-415/460
Rotation
Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatГ” Leads
Shaft Up, Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
