Genteq

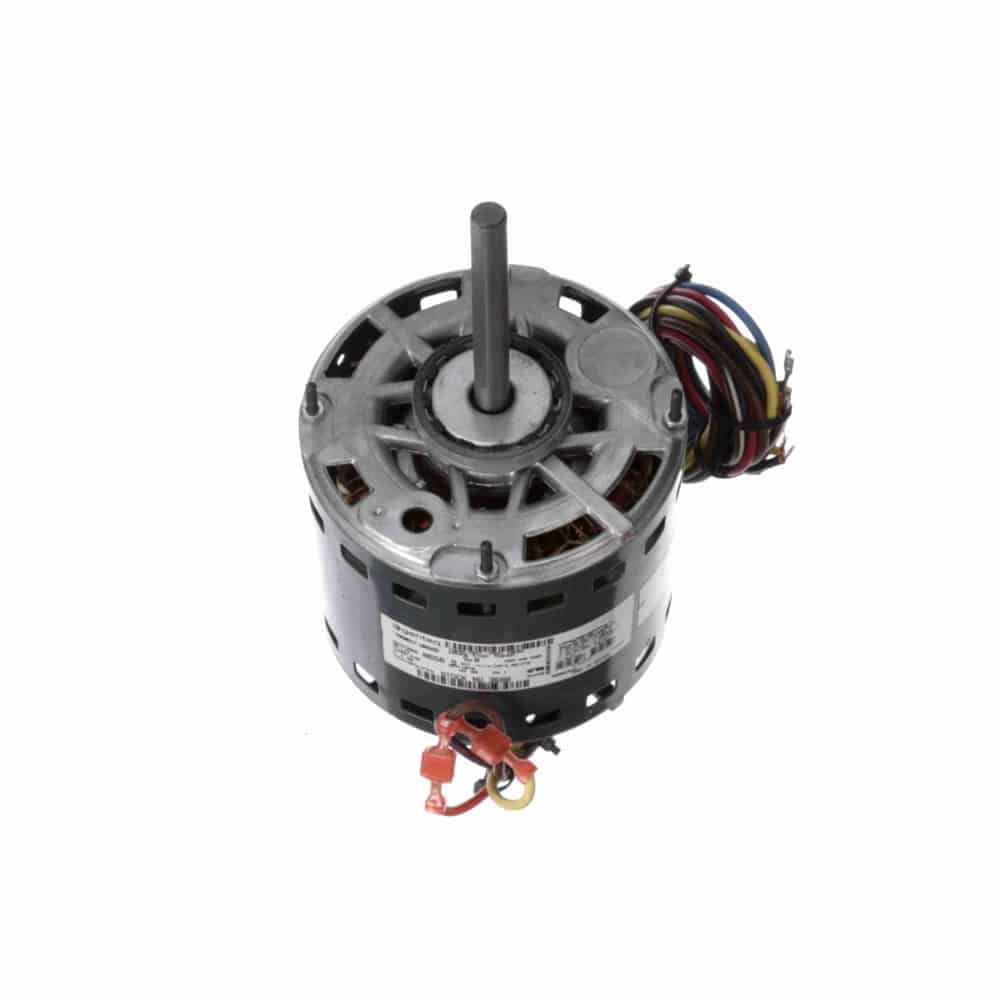

1/2HP PSC 5.6″ OAO 3spd 1075 REV 208-230V 5uF BM
Mfr # 3588 | Wright’s # GEN 3588
1/2HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$123.14
Product Information
Brand Genteq
Mfr # 3588
Wright's # GEN 3588
Specifications
C Dim 10.14"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6"
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Thermally Protected
Phase 1
Rated Current 4.30
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Resilient Ring Mounting, Extended Clampbolts
