Genteq

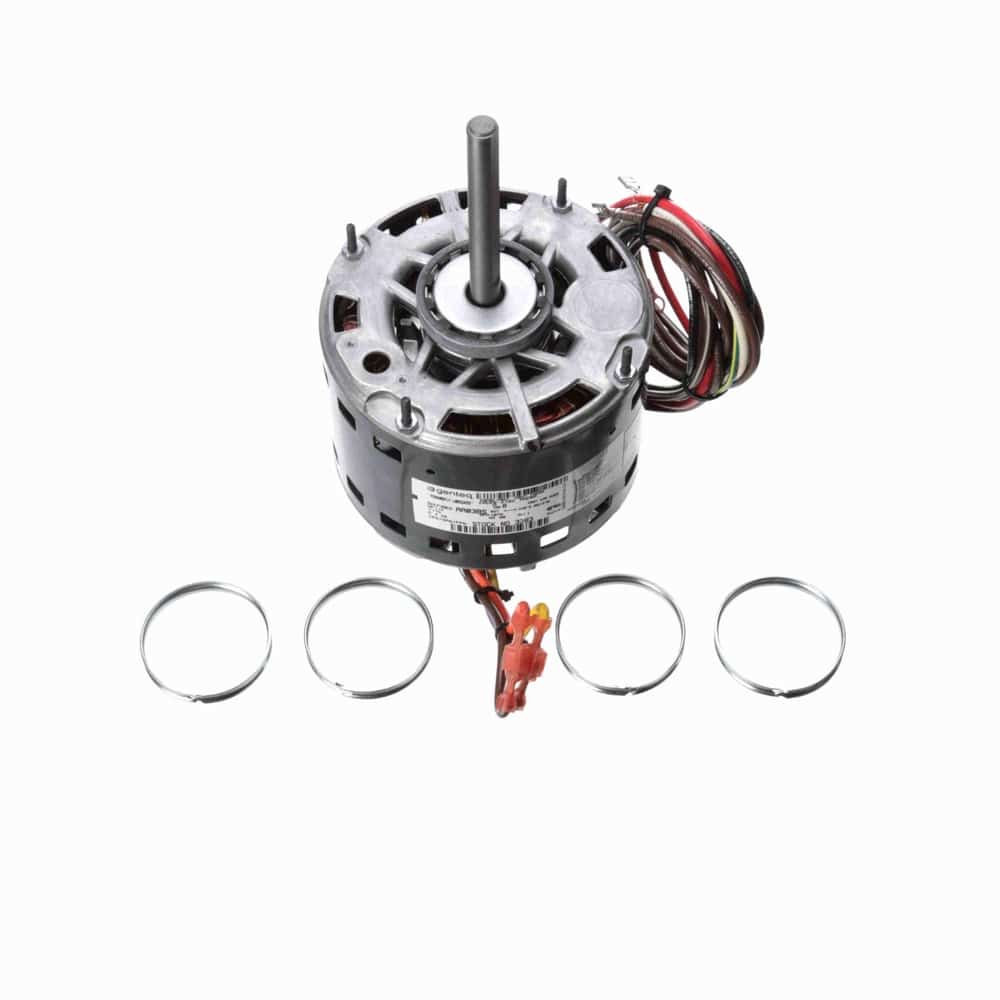

1/4HP PSC 5.6″ OAO 2spd 1075 REV 115V 5uF BM
Mfr # 3383 | Wright’s # GEN 3383
1/4HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Genteq
Mfr # 3383
Wright's # GEN 3383
Specifications
C Dim 9.14"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6"
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 4.20
Rated Voltage 115
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Resilient Ring Mounting, Extended Clampbolts
120V
