Genteq

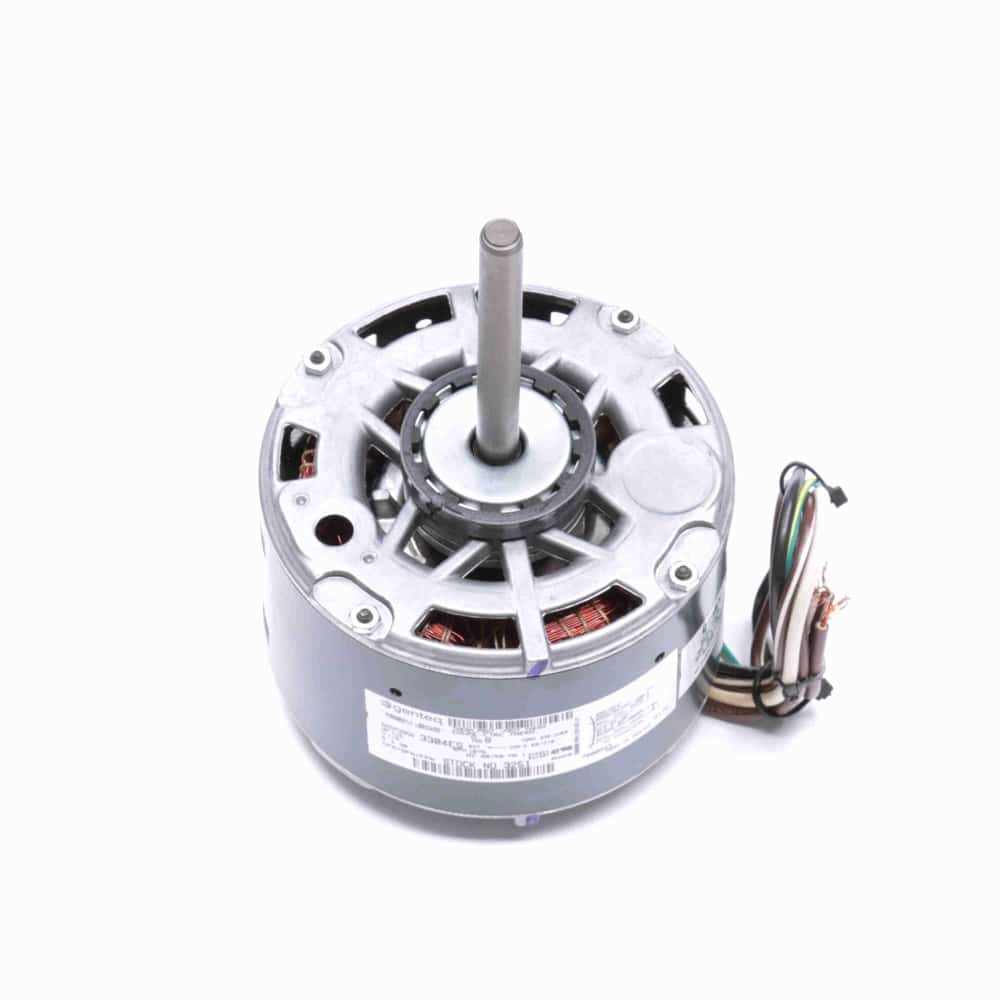

1/6HP PSC 5.6″ OAO 1075 CWSE 115V 5uF BM
Mfr # 3251 | Wright’s # GEN 3251
1/6HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3251
Wright's #
GEN 3251
Country of Origin
MEX
Specifications
C Dim
8.64"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.30
Rated Voltage
115
Rotation
Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatϴ” Leads
Resilient Ring Mounting
120V
