Genteq

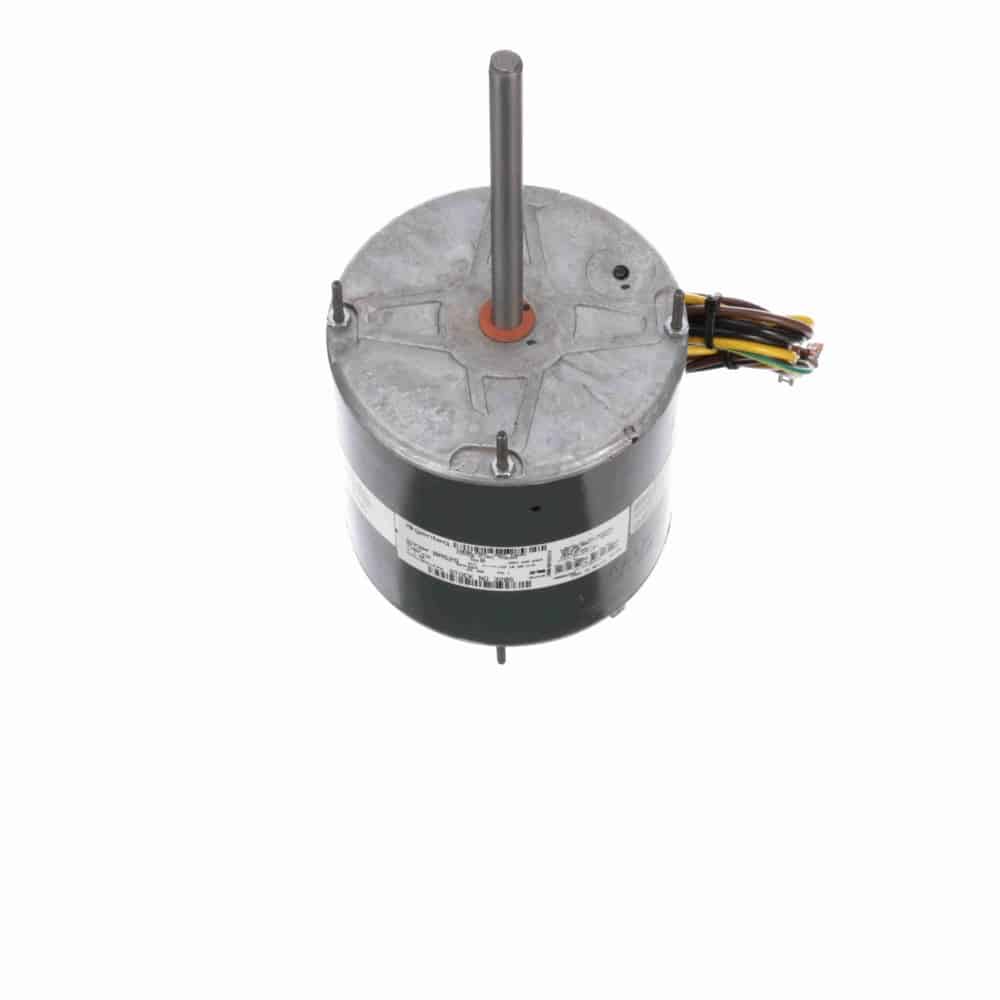

1/3HP PSC 5.6″ TE 825 REV 208-230V 10uF CF
Mfr # 3205 | Wright’s # GEN 3205
1/3HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand Genteq
Mfr # 3205
Wright's # GEN 3205
Specifications
C Dim 11.81"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6"
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.90
Rated Voltage 208-230
Rotation Reversible
RPM 825
Service Factor 1
Shaft Diameter 0.5"
Speed 825
Description
Condenser Fan – Heat Pump Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
