Genteq

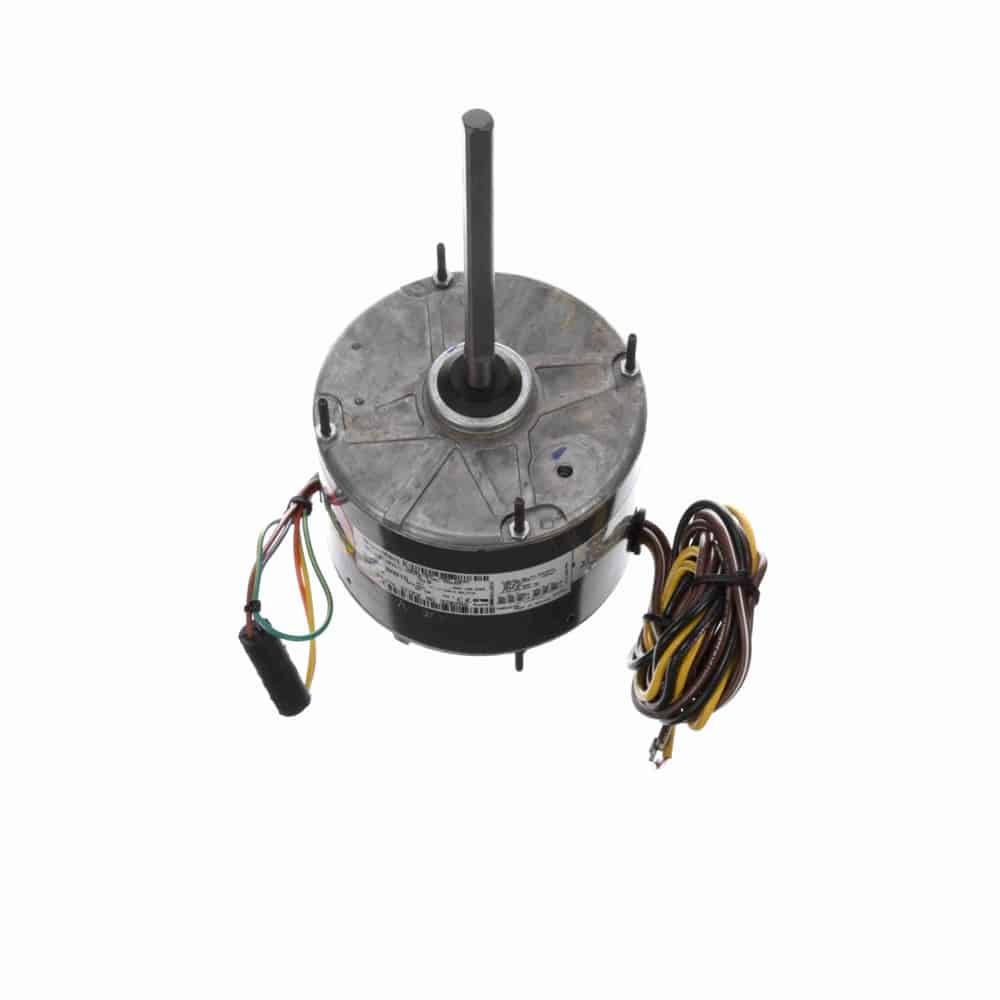

1/8HP PSC 5.6″ TE 825 REV 208-230V 5uF CF
Mfr # 3202HS | Wright’s # GEN 3202HS
1/8HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand Genteq
Sub-Brand HEAT SHIELD®
Mfr # 3202HS
Wright's # GEN 3202HS
Specifications
C Dim 11.21"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6"
Frequency 60 Hz
HP 0.13 HP
HP2 1/8 HP
Insulation Class B
Material Rolled Steel
Max Ambient 70°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.85
Rated Voltage 208-230
Rotation Reversible
RPM 825
Service Factor 1
Shaft Diameter 0.5"
Speed 825
Description
Heat Shield – Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
