Genteq

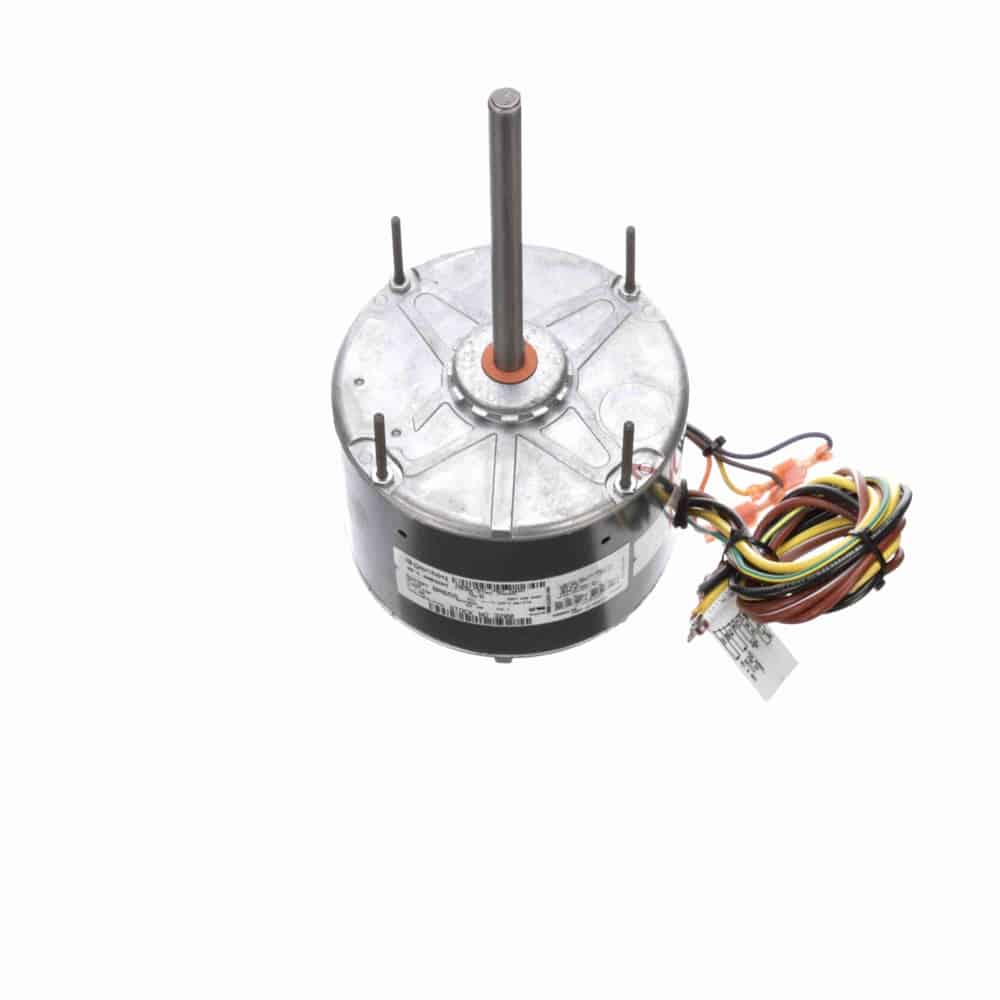

1/6HP PSC 5.6″ OAO 825 REV 208-230V 5uF CF
Mfr # 3200 | Wright’s # GEN 3200
1/6HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3200
Wright's #
GEN 3200
Country of Origin
MEX
Specifications
C Dim
11.14"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.00
Rated Voltage
208-230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Description
Condenser Fan – Heat Pump Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Shaft Up/Horizontal, Extended Pulley End Clampbolts, Belly Band
