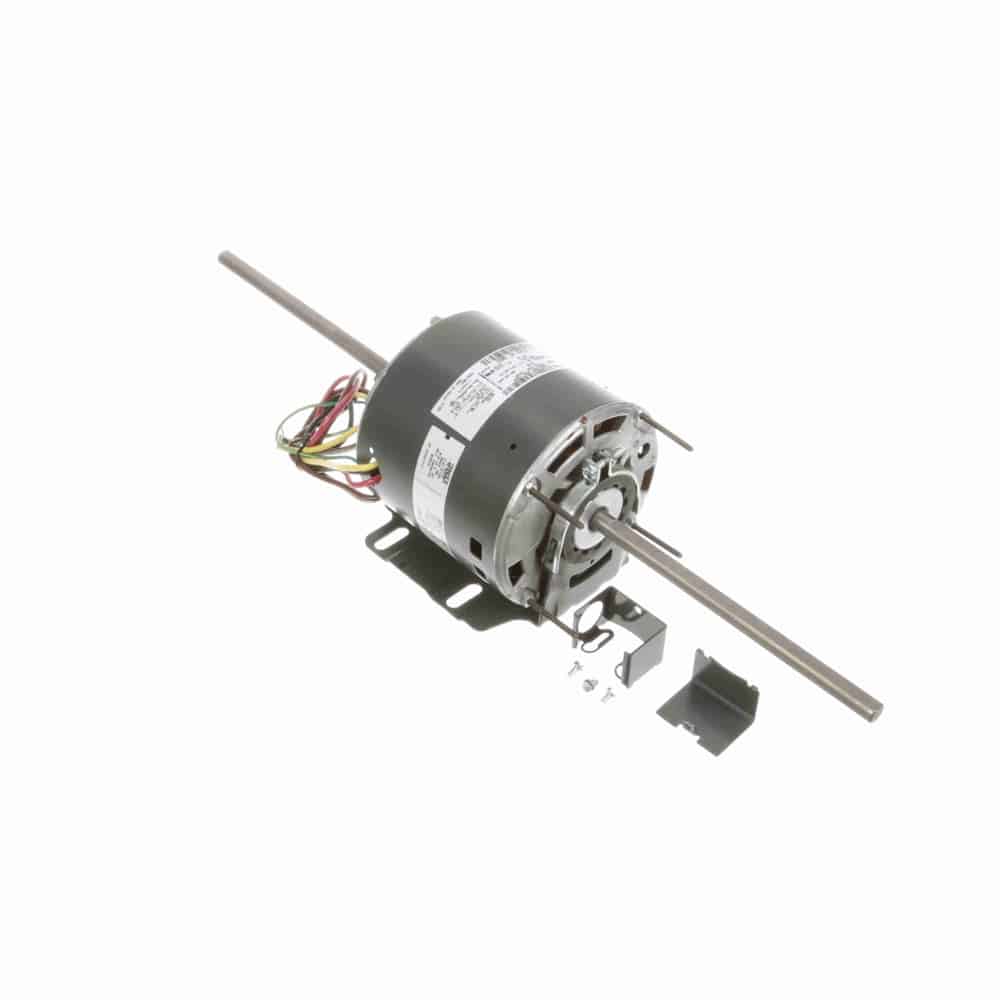

1/2HP PSC 5.6" OAO 2spd 1075 CWSE 208-230V 5uF BM
Genteq

1/2HP PSC 5.6″ OAO 2spd 1075 CWSE 208-230V 5uF BM

Mfr # 3092 | Wright’s # GEN 3092

1/2HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure

Contact Us For Pricing

Product Information

Brand Genteq
Mfr # 3092
Wright's # GEN 3092

Specifications

C Dim 23"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6"
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 3.80
Rated Voltage 208-230
Rotation Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075

Description

Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
Dual Extension, 1/2″ Diameter Shaft with Flat϶” Leads
Resilient Base

Documents

Data Sheet
