Genteq

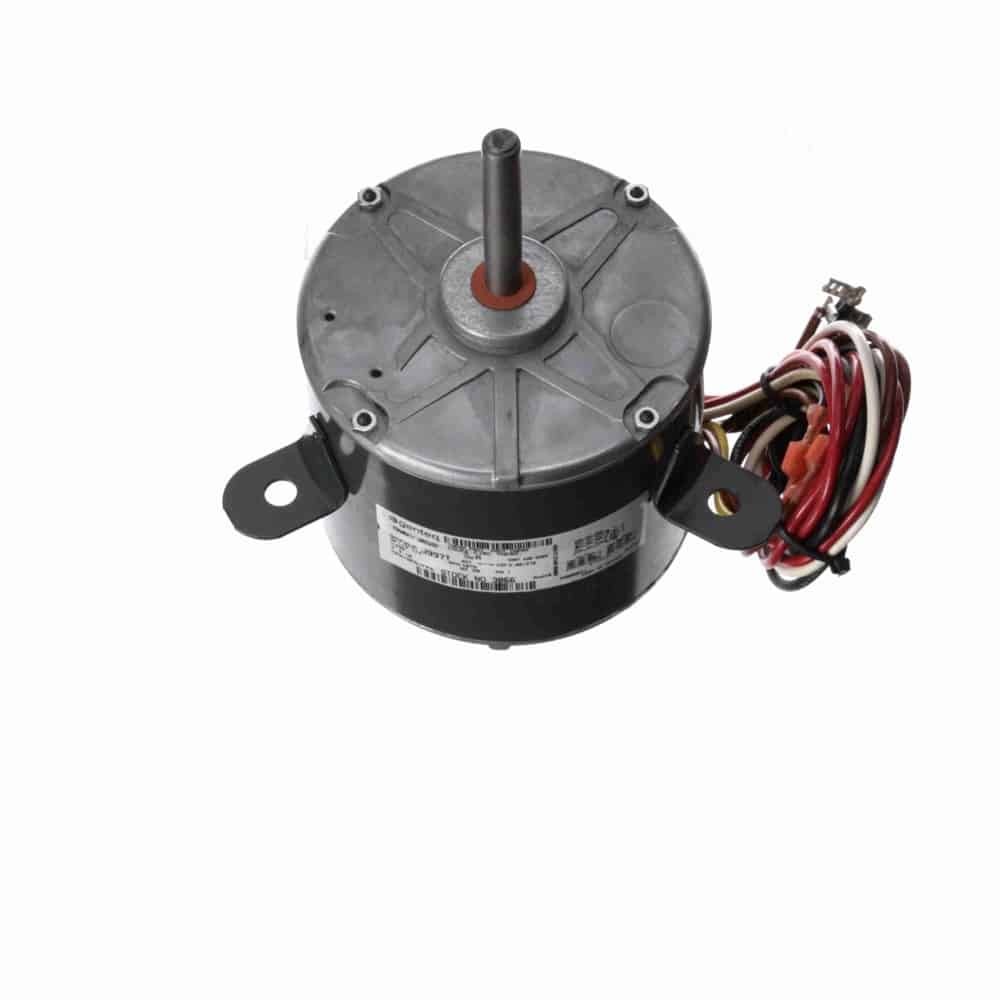

1/3HP PSC 5.6″ OAO 2spd 1075 REV 230V 5uF
Mfr # 3066 | Wright’s # GEN 3066
1/3-1/4HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3066
Wright's #
GEN 3066
Country of Origin
MEX
Specifications
C Dim
8.2"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3-1/4 HP
Insulation Class
A
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.10
Rated Voltage
230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЕ” Leads
Rigid Lug, Extended Clampbolts OPE
240V
