Genteq

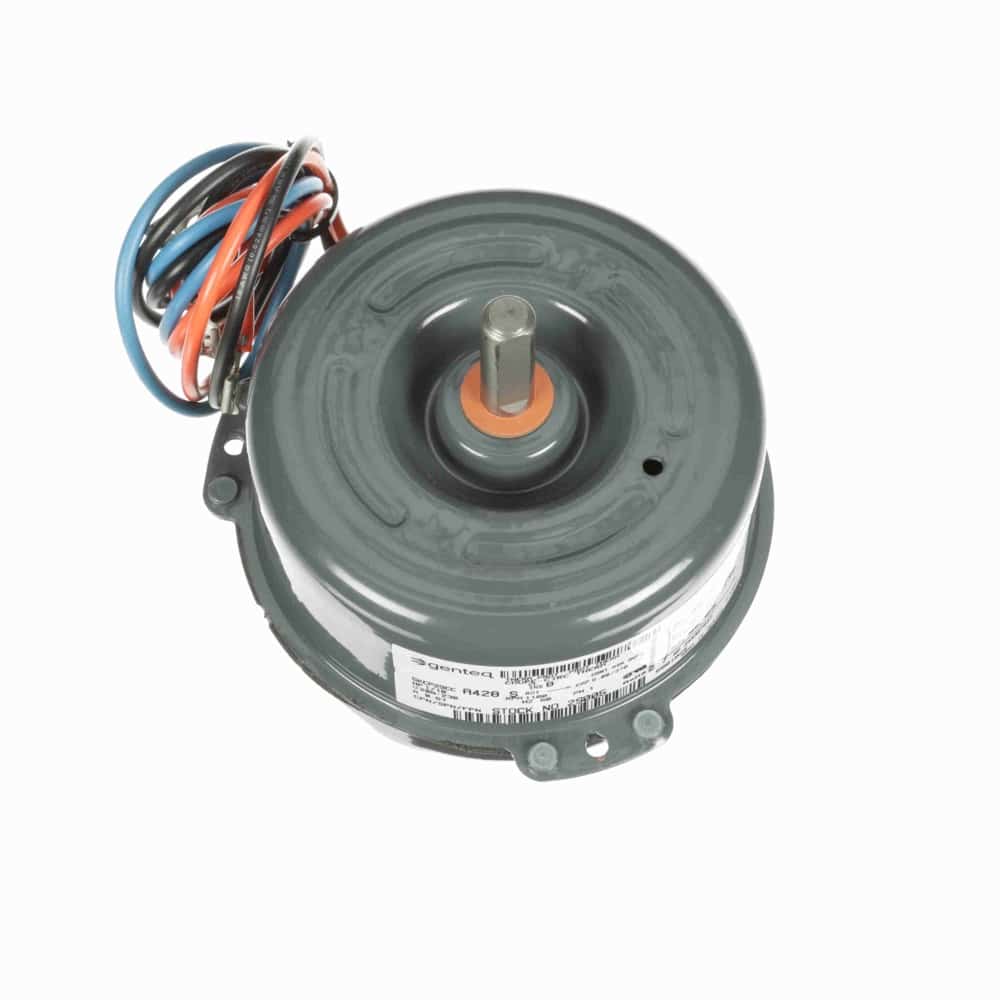

1/10HP PSC 5″ TE 1100 CCWSE 208-230V 5uF
Mfr # 2S005 | Wright’s # GEN 2S005
1/10HP OEM Replacement Motor, 1 Phase, 5″ Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
$124.25
Product Information
Brand
Genteq
Mfr #
2S005
Wright's #
GEN 2S005
Country of Origin
MEX
Specifications
C Dim
4.92"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.67
Rated Voltage
208-230
Rotation
Clockwise
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЁ” Leads
Extended Studs Opposite Shaft End, Flange Mount
