Genteq

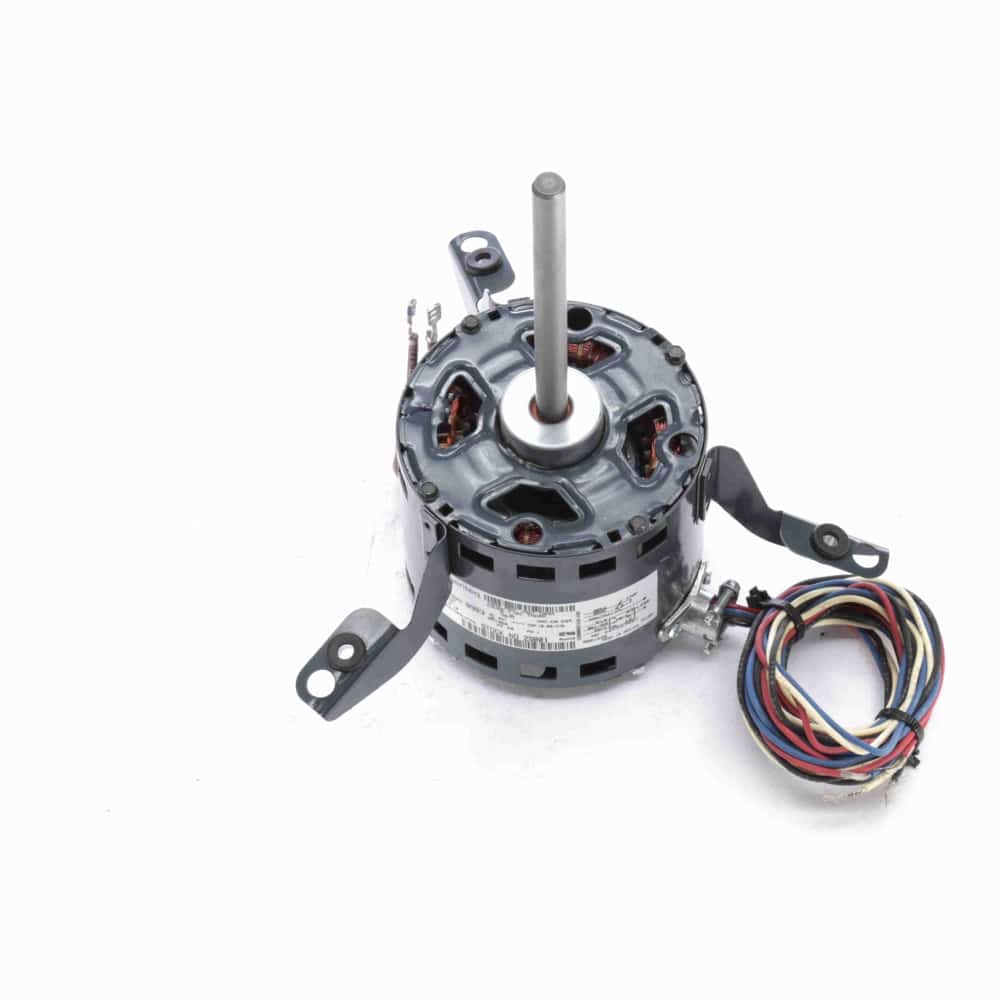

1/8HP PSC 5″ OAO 3spd 950 CWSE 115V 10uF
Mfr # 2S001 | Wright’s # GEN 2S001
1/8HP OEM Replacement Motor, 1 Phase, 5″ Frame, 950 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$148.35
Product Information
Brand
Genteq
Mfr #
2S001
Wright's #
GEN 2S001
Specifications
C Dim
10.56"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
A
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.10
Rated Voltage
115
Rotation
Counterclockwise
RPM
950
Service Factor
1
Shaft Diameter
0.5"
Speed
950
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Flatа” Leads
Torsion Flex Lug Mounting
120V
