Genteq

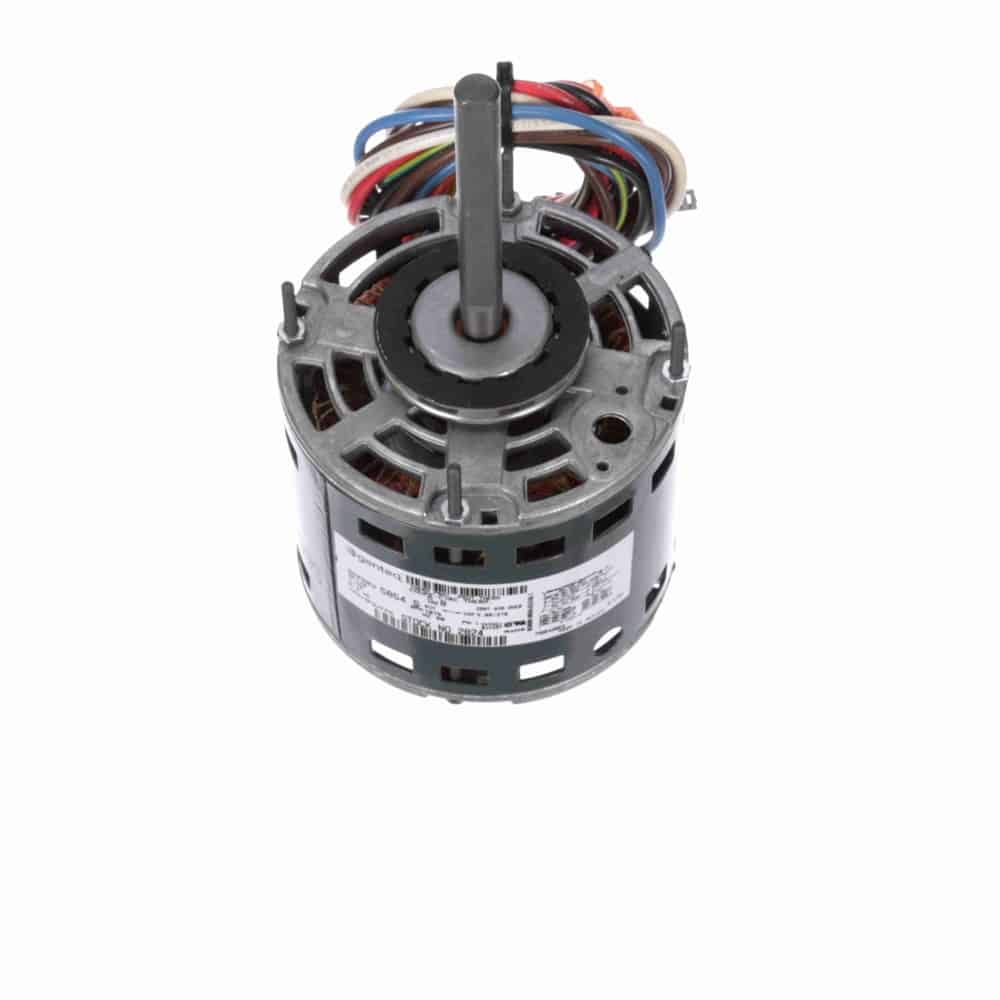

1/8HP PSC 5″ OAO 3spd 1075 REV 115V 5uF BM
Mfr # 2824 | Wright’s # GEN 2824
1/8HP Fan & Blower Motor, 1 Phase, 5″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$244.14
Product Information
Brand
Genteq
Mfr #
2824
Wright's #
GEN 2824
Specifications
C Dim
8.95"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.45
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Direct Drive Fan & Blower Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Resilient Ring Mounting
120V
