Genteq

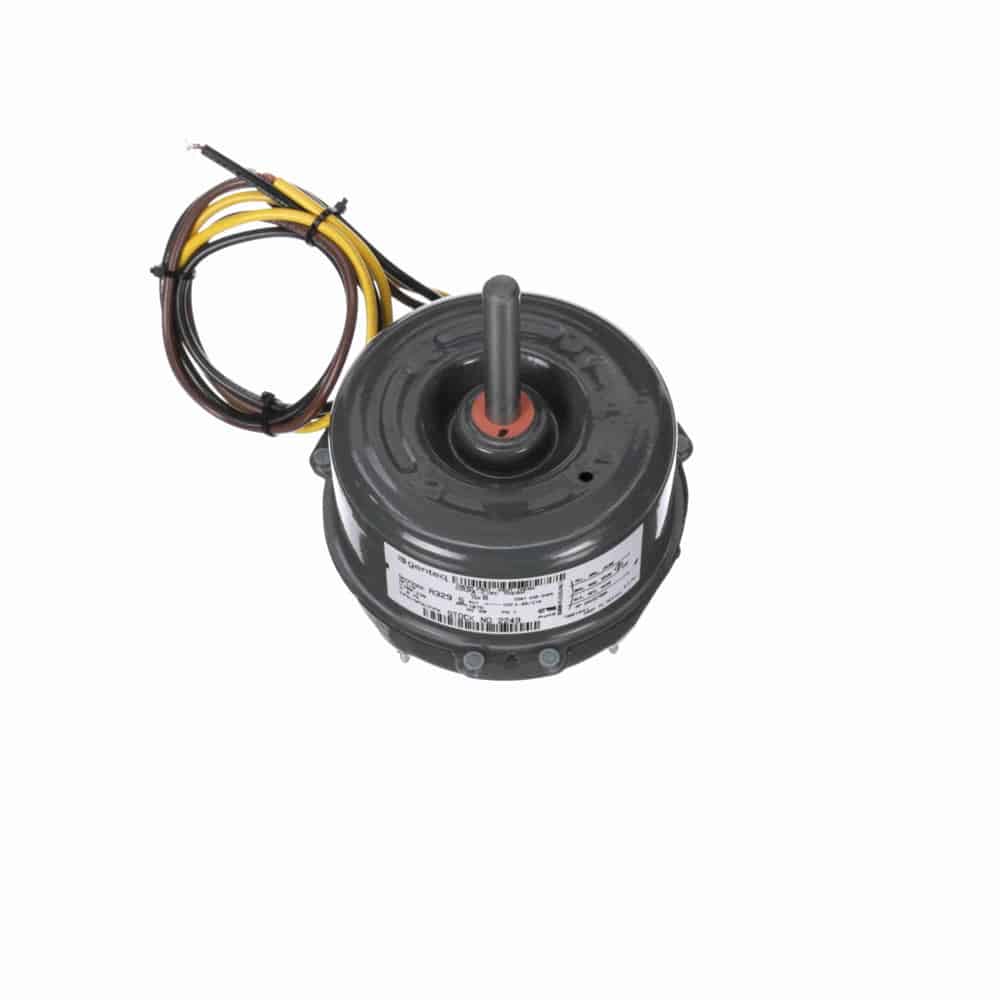

1/8HP PSC 5″ TE 1075 CWSE 200-230V 5uF CF
Mfr # 2249 | Wright’s # GEN 2249
1/8HP Condenser Fan Motor, 1 Phase, 5″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 200-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
2249
Wright's #
GEN 2249
Specifications
C Dim
5.98"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
5"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.75
Rated Voltage
200-230
Rotation
Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Description
Condenser Fan – Heat Pump Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Opposite Shaft End, Flange Mount
