Genteq
1/4HP PSC 5″ OAO 1100 CWSE 230V 5uF
Mfr # 2090 | Wright’s # GEN 2090

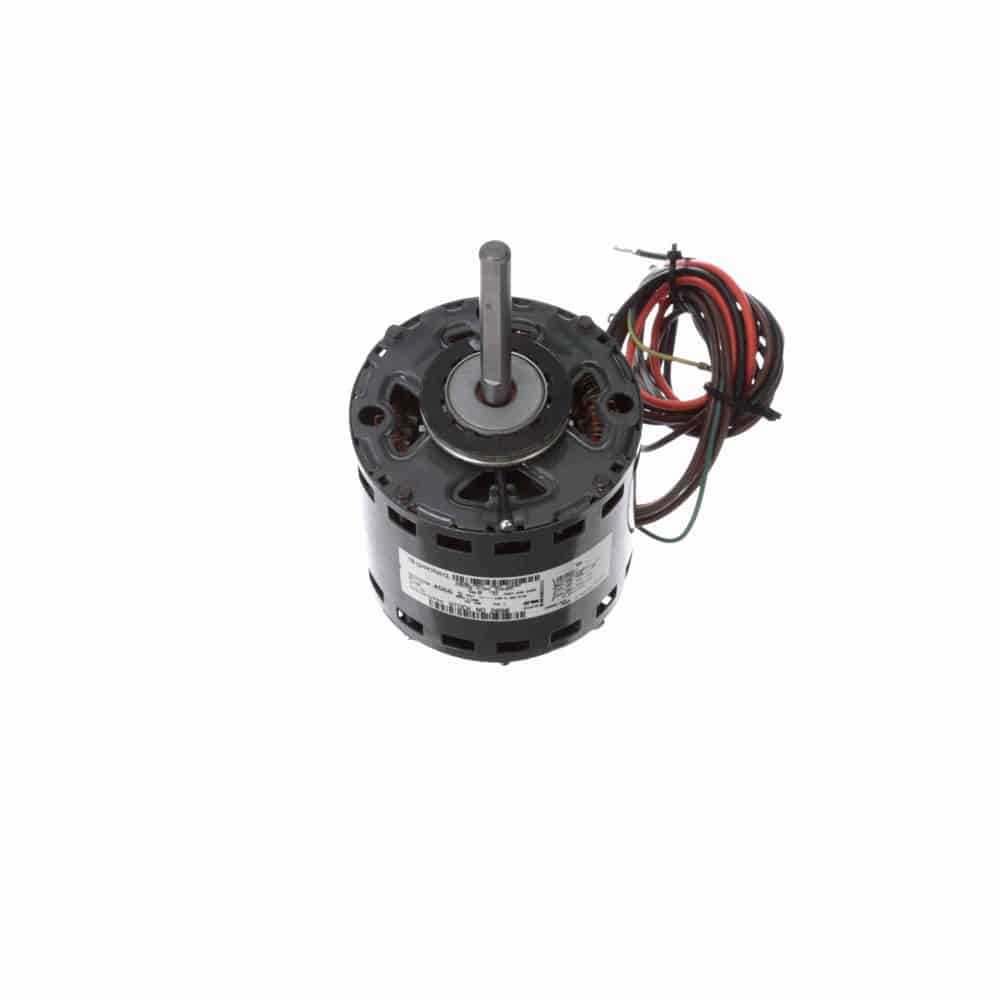

1/4HP OEM Replacement Motor, 1 Phase, 5″ Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
2090
Wright's #
GEN 2090
Country of Origin
MEX
Specifications
C Dim
8.84"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.55
Rated Voltage
230
Rotation
Counterclockwise
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЌ” Leads
Resilient Ring Mounting
240V
