Fasco

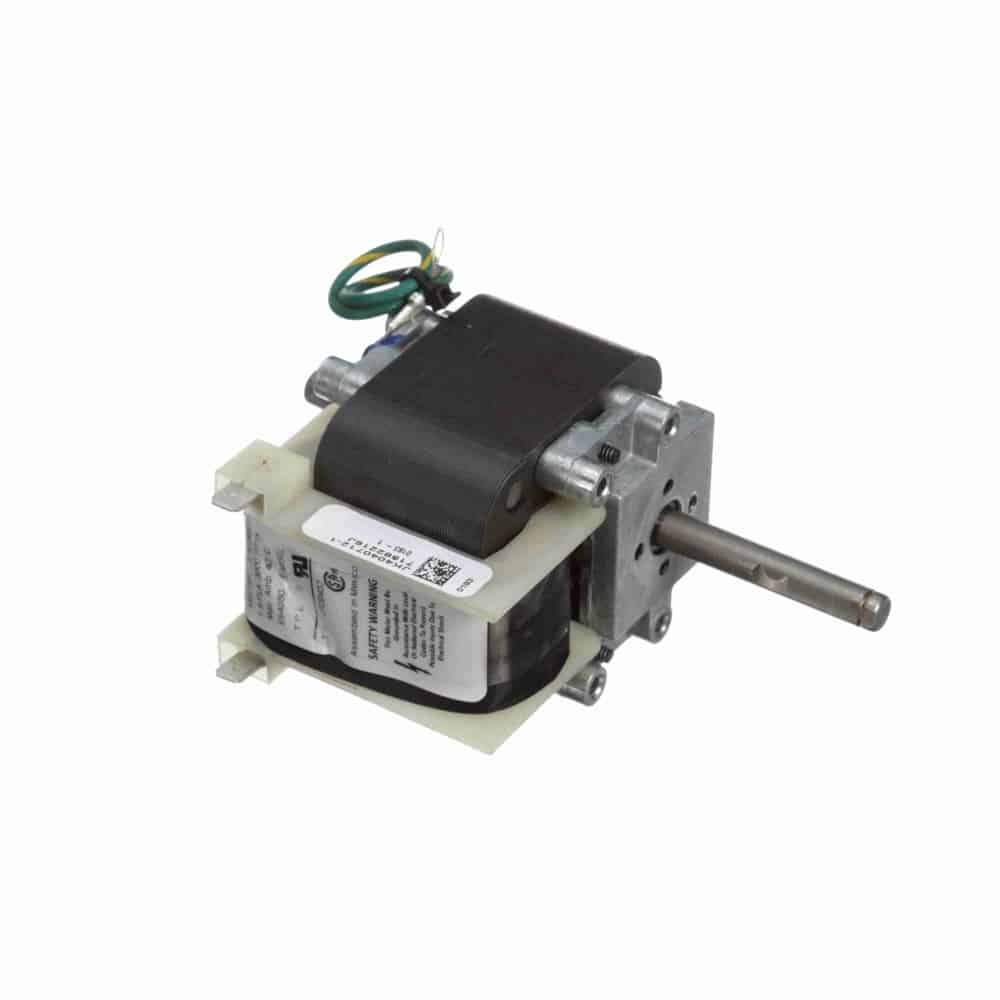

1/22HP ShP 3000 115V C-Frame
Mfr # K674 | Wright’s # FAS K674
1/22HP C-Frame / Skeleton Motor, 1 Phase, 3000 RPM, 1 Speed, Shaded Pole, 115V, Open Enclosed Enclosure
$89.19
Product Information
Brand
Fasco
Mfr #
K674
Wright's #
FAS K674
Country of Origin
MEX
Specifications
C Dim
5.18"
Electrical Type
Shaded Pole
Enclosure
Open Enclosed
Frame
C-FRAME
Frequency
60 Hz
HP
0.05 HP
HP2
1/22 HP
Insulation Class
B
kW
0.04kW
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.9
Rated Voltage
115
Rotation
Clockwise
RPM
3000
Service Factor
1
Shaft Diameter
0.311"
Starting Method
Description
Refrigeration Motor
C-Frame
Shaded Pole
Thermally Protected, One-Shot Fuse
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
.3116″ Diameter Double Shaft with Flat
Power Quick Connect Terminal
(2) Tapped Screw Holes
120V
