Fasco
1/8HP PSC 5.6″ 1125 CCWSE 208-230V 5uF
Mfr # D847 | Wright’s # FAS D847

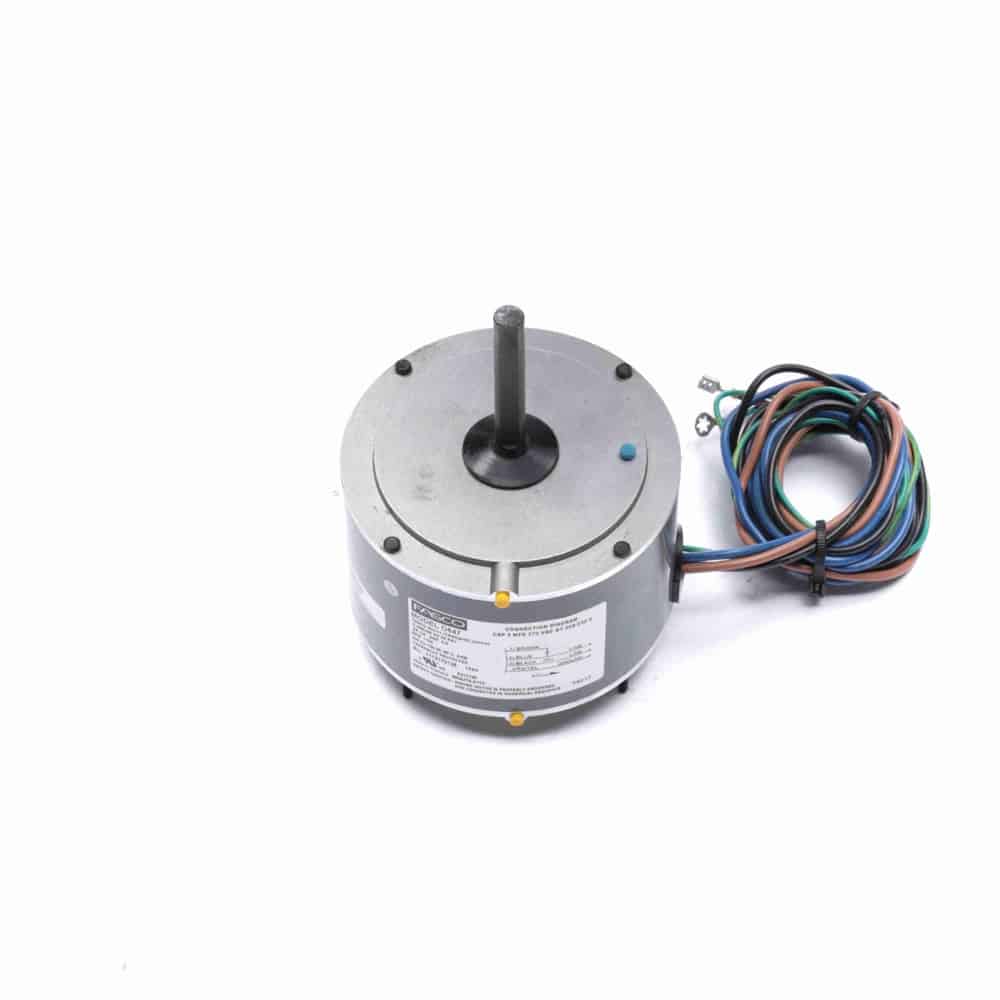

1/8HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1125 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D847
Wright's #
FAS D847
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
5.6"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.63
Rated Voltage
208-230
Rotation
Counterclockwise Shaft End
RPM
1125
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatО” Power Leads with Flag Terminal, 54″ Capacitor Lead with Quick Connect Terminal
Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)
