Fasco

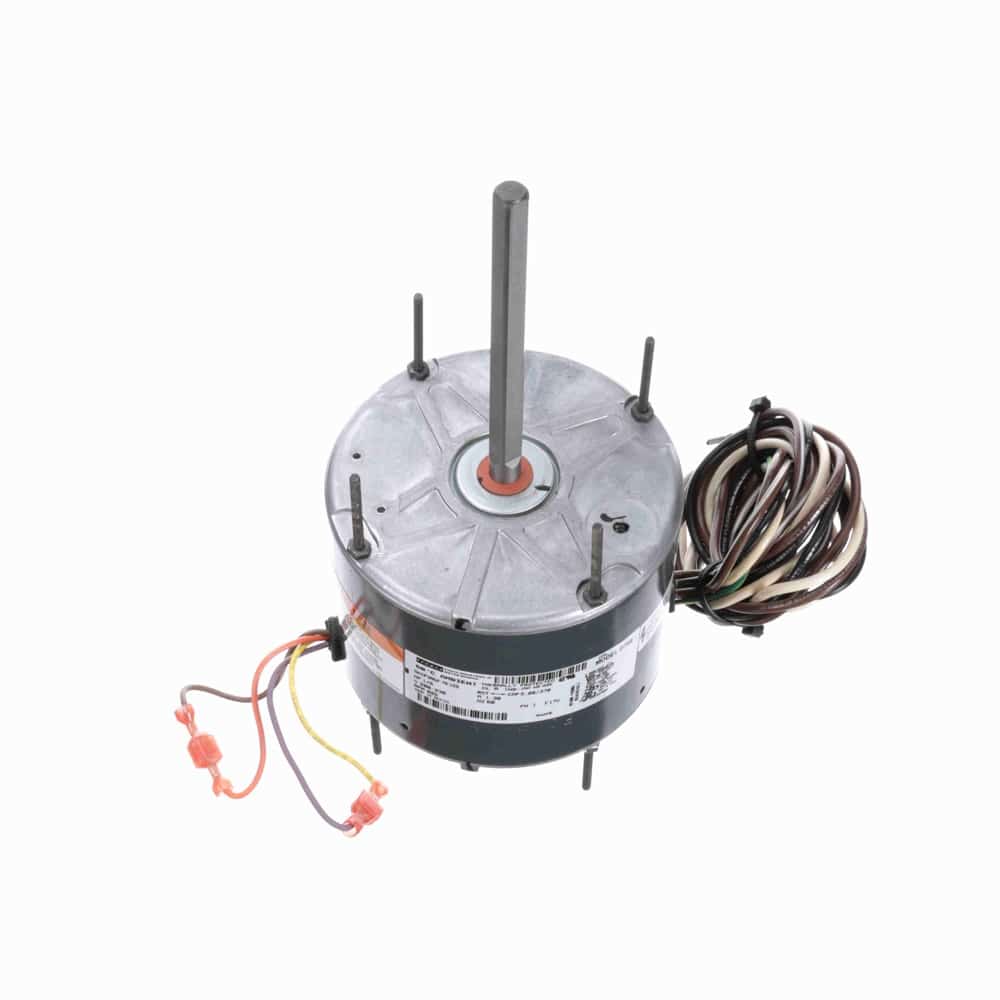

1/6HP PSC 5.6″ 825 REV 208-230V 5uF CF
Mfr # D798 | Wright’s # FAS D798
1/6HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D798
Wright's #
FAS D798
Country of Origin
IND
Specifications
C Dim
10.56"
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
5.6"
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.30
Rated Voltage
208-230
Rotation
Counterclockwise/Clockwise
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Description
Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatП” Leads
Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
