Fasco

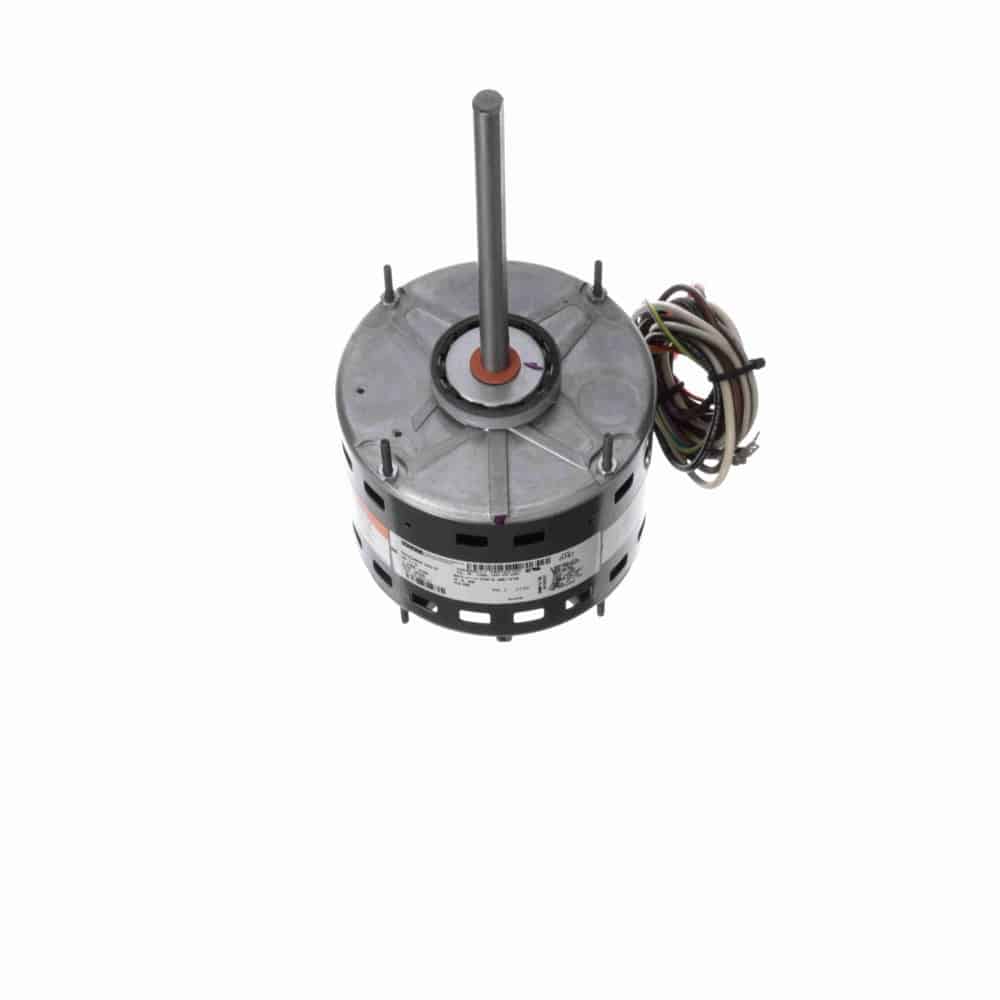

1/3HP PSC 5.6″ 1625 REV 208-230V BM
Mfr # D787 | Wright’s # FAS D787
1/3HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D787
Wright's #
FAS D787
Specifications
C Dim
11.89"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.20
Rated Voltage
208-230
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Description
Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor
Thermally Protected
Open Shell and Lead End End-Frame, Enclosed Shaft End End-Frame, Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Double FlatЃ” Leads
Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)
